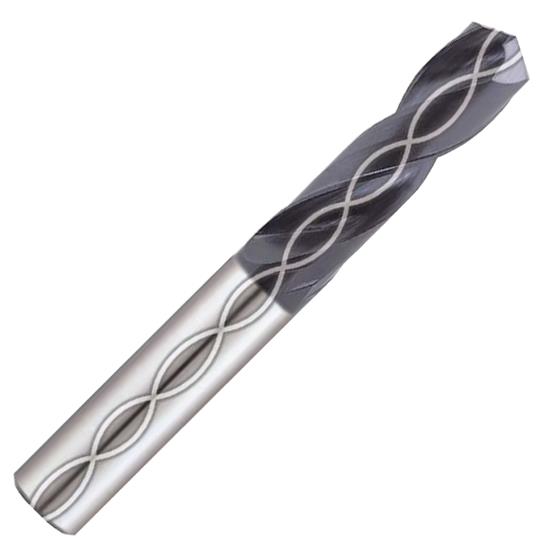

2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL

2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL 2.7mm Diameter 2 Flute YG Carbide INOX Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3XD With Coolant Holes, TiAlN Coated - 4mm Shank, 20mm Flute Length, 55mm OAL
YG-1 TOOL CO.
DH451027
DH451027
DH451027
0.1063" 02.70mm
Weight: 0.022 LBS
Brand: YG-1 TOOL CO.
$119.07
(30% off)
$83.50
each
Add To My Favorites Coupon Available
Technical Details & Downloads

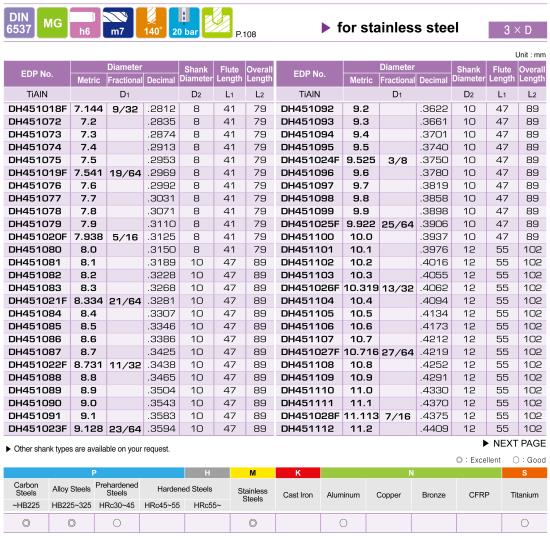

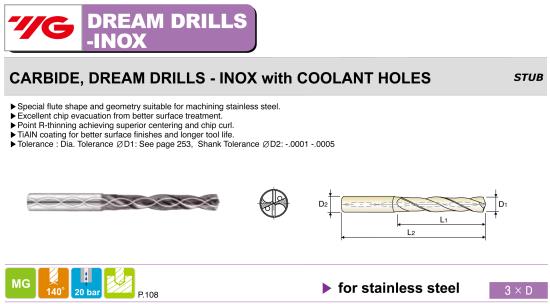

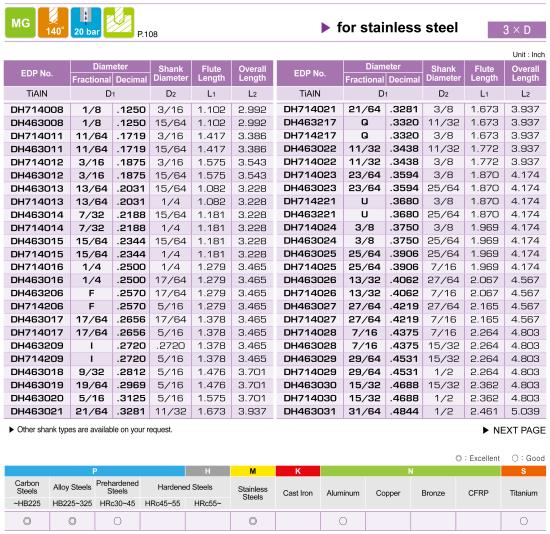

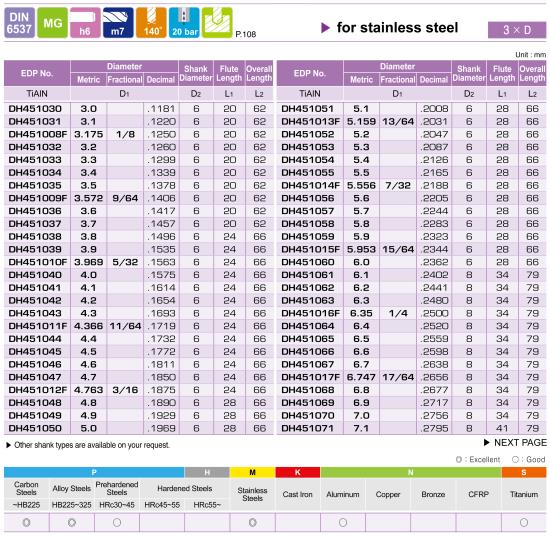

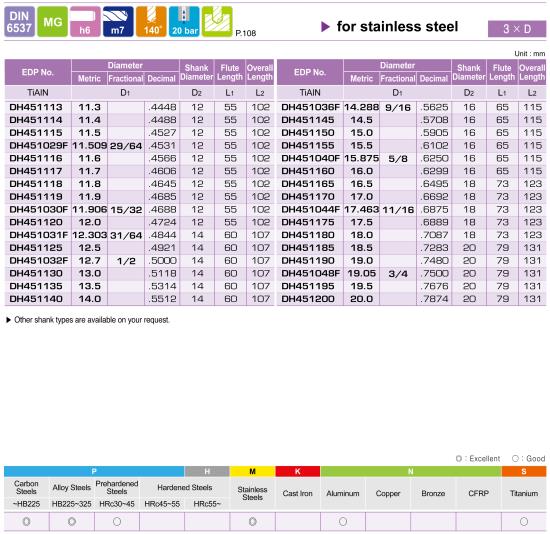

Technical/Extra Information Catalog Page
Product Description

2.7Mm Diameter 2 Flute Yg Carbide Inox Dream Drill For Stainless Steel & Tough Materials, 140° Point, 3Xd With Coolant Holes, Tialn Coated - 4Mm Shank, 20Mm Flute Length, 55Mm Oal

  • YG INOX Carbide Dream Drills for tough materials like stainless steels and pre hardened steels
  • Point radius thinning achieves superior centering ability and chip curling
  • Special flute geometry and chip pocket promotes excellent chip evacuation and proper chip curl especailly suited for drilling stainless steels
  • Positive rake angle with R-thinning reduces cutting forces and improves chip breaking
  • Upgraded TiAlN coating for higher wear resistance, lower friction, higher cutting speeds and feeds with improved hole quality
  • Special surface treatment after coating to reduce friction and better chip flow.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DH451027
Length Of Flute
20 mm
Overall Length
55 mm
Shank Diameter
4mm
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 3XD
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
Stainless Steels and Tough Materials
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill INOX
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.1063" 02.70mm
LOC Multiple
3XD
Coolant Through
With Coolant Holes
