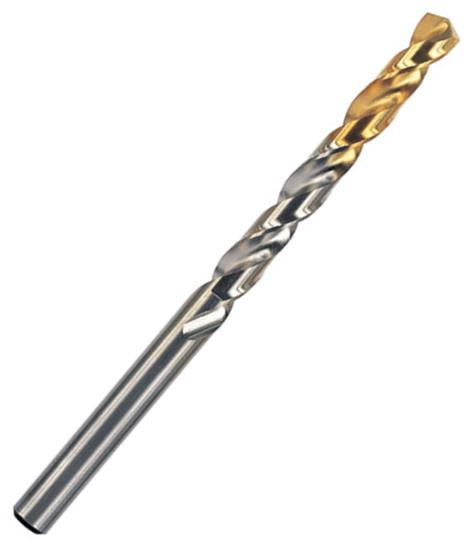

5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL

5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL 5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL 5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL 5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL 5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL 5.5mm Diameter 2 Flute YG Jobber Length TiN Coated Tip Gold-P Drill, HSS-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57mm Flute Length, 93mm OAL
YG-1 TOOL CO.
DLGP195055
DLGP195055
DLGP195055
0.2165" 05.50mm
Weight: 0.038 LBS
Brand: YG-1 TOOL CO.
$5.59
(31% off)
$3.88
each
Add To My Favorites Coupon Available
Technical Details & Downloads

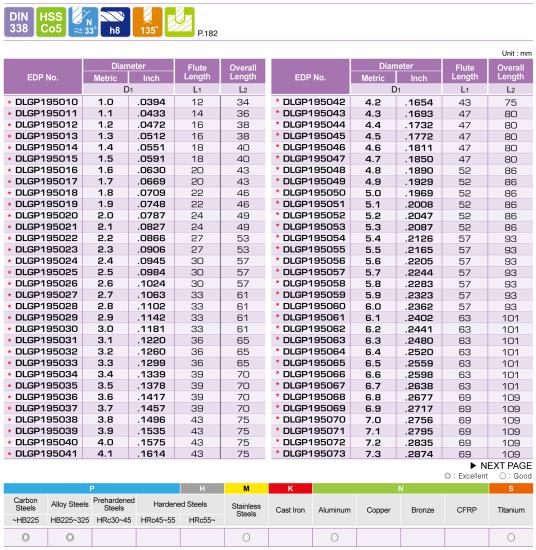

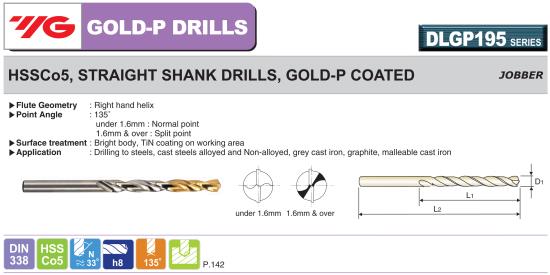

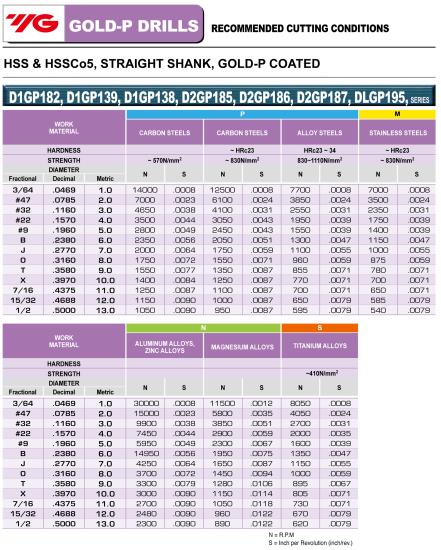

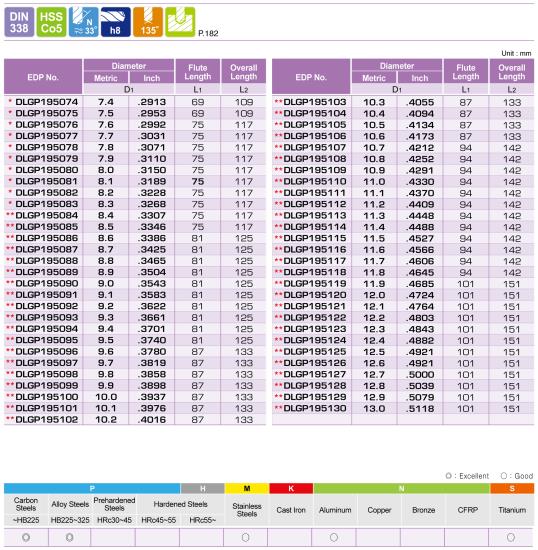

Technical/Extra Information Catalog Page Catalog Page
Product Description

5.5Mm Diameter 2 Flute Yg Jobber Length Tin Coated Tip Gold-P Drill, Hss-Co5% (M35 Cobalt), 135° Split Point, Straight Shank, 57Mm Flute Length, 93Mm Oal. Pre-Packaged & Sold In Packs Of 10 Pieces.

  • YG jobber length HSS-Co5% (M35 Cobalt) straight shank Gold-P drills
  • Bright drill body with TiN coating on the working area for a competitively priced drill with the same performance as full TiN coating
  • Right hand spiral, 33° helix
  • 135° point (under 1.6mm - normal point, 1.6mm & over - split point)
  • For drilling in Steels, Cast Steels Alloyed and Non-Alloyed, Stainless Steels, Aluminum and Titanium

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DLGP195055
Length Of Flute
57 mm
Overall Length
93 mm
Shank Diameter
Equals Drill Diameter
Number Of Flutes
2
Drill Point Angle
135°
Drill Type
Jobber Length Drill
Helix Angle
33°
Tool Coating
TiN
Tool Substrate Material
HSS-Co5% M35 Cobalt
Primary Application
General Purpose
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Gold-P Drill
Single Or Double End
Single End
Shank Type
Straight Shank
Drill Diameter
0.2165" 05.50mm
Coolant Through
Without Coolant Holes
