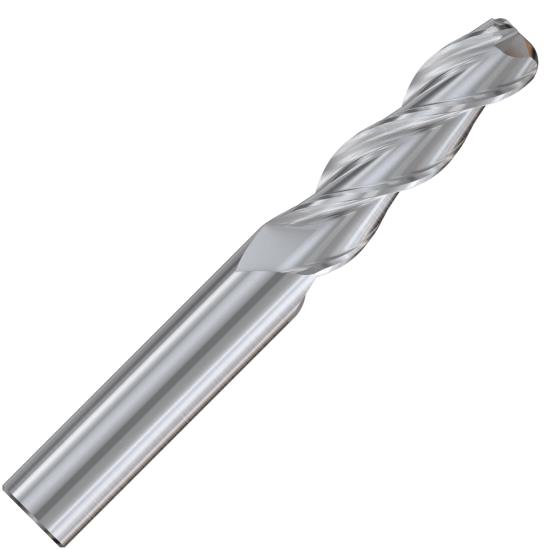

5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum

5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum 5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" LOC, 3-1/2" OAL. YG-1 ALU-POWER HPC 37° Helix, Bright Finish For Aluminum
YG-1 TOOL CO.
E5G97803
E5G97803
E5G97803
0.6250" 5/8"
Weight: 0.571 LBS
Brand: YG-1 TOOL CO.
$267.62
(30% off)
$187.68
each
Add To My Favorites
Technical Details & Downloads

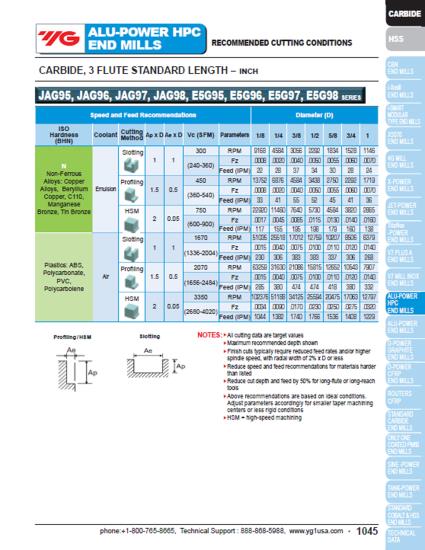

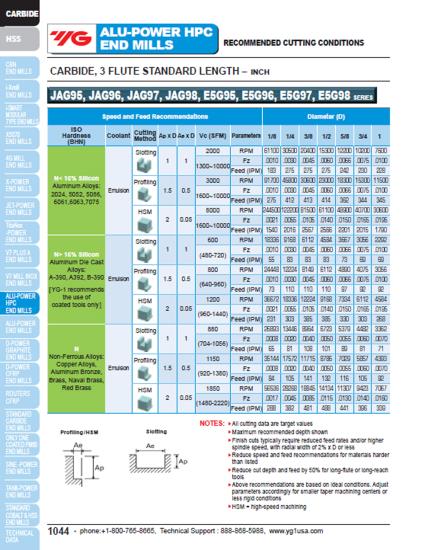

Technical/Extra Information Catalog Page Catalog Page
Product Description

5/8" 3 Flute Carbide End Mill, .090" Corner Radius, 5/8" Plain Shank, 1.625" Loc, 3-1/2" Oal. Yg-1 Alu-Power Hpc 37° Helix, Bright Finish For Aluminum. What Do You Get When You Add 3-Flutes To The Center, Polished Ultra-Micrograin Carbide, Extra-Large Chip Gullets And A Razor- Sharp Cylindrical Land Design? In Technical Terms, It’S Called The Alu-Power Hpc. In A Machinist’S Term, It’S Called An Extremely Sharp, Highly Durable Milling Monster That Won’T Back Down, Cut After Cut. Yg-1'S Alu-Power Hpc Carbide End Mills Are Built To Handle High-Speed Cutting Without Edge Buildup. Designed With High Spindle Speeds In Mind, They Excel In Ultra High-Speed, High Horsepower Applications Up To 35,000 Rpm. Whether You’Re Running Parts In Today’S Most Advanced 5-Axis Machining Centers On The Market Today, Or In Machines Built Decades Ago, Alu-Power Hpc Makes The Most Of Your Manufacturing Assets. That’S Because It's Unique 3 Flutes To The Center, 37° Helix Design Can Also Operate At Lower Speeds With Higher Efficiency. These Tools Are Highly Effective In Vertical Ramping Up To 20°, Trochoidal Milling Applications, High Speed Peel Milling And Step-Over Plunging Applications. When You Lock An Alu-Power Hpc Into Your Milling Machine, You’Ve Unleashed The Fastest-Running, Lowest Heat-Producing End Mill In The Business. And That Means You’Ve Got The Speed And Sharpness To Take On Not Only The Tough Materials But Also Even More Fragile Mixed Alloy Castings With Ease. Discover The Alu-Power Hpc And Start Pushing Your Productivity Higher.

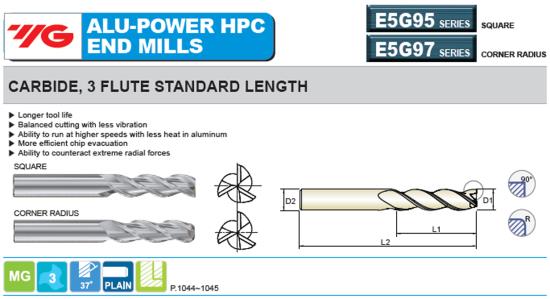

  • YG-1 ALU-POWER HPC Series E5G97: Inch Size Micrograin Carbide End Mills, 37° Helix, Plain Shank, 3 Flute, Standard Cut Length, Corner Radius, Bright Finish

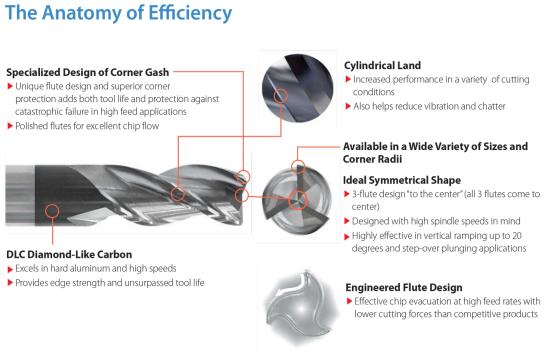

  • Ideal Symmetrical Shape - all 3 flutes come to center
  • Ability to run at higher speeds with less heat in aluminum

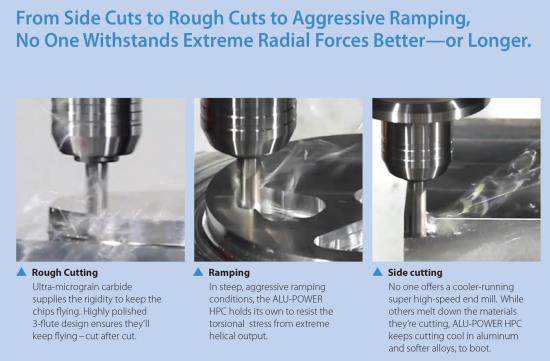

  • Ability to counteract radial forces and torsional stresses from extreme helical output and ramping
  • Superior corner protection enhances both tool life and protection against catastrophic failure in high feed applications
  • Razor sharp cylindrical land design for increased performance, balanced cutting and reduced vibration in heavy cuts
  • Engineered Flute Design for Effective chip evacuation at high feed rates with lower cutting forces
  • Polished flutes for excellent chip flow and more efficient chip evacuation

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
11
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
E5G97803
Tool Diameter
0.6250" 5/8"
Length Of Cut
1.625"
Overall Length
3.500"
Shank Diameter
0.6250" 5/8"
Length Below Shank
0.000"
Radius Size
0.090"
Corner Radius
0.090"
Number Of Flutes
3
Helix Angle
37°
End Style
Radius
Tool Coating
None
Tool Substrate Material
Carbide
Primary Application
Aluminum Alloys
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E5G97
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
ALU-POWER HPC
Shank Type
Plain Shank
Helix Type
Equal Index
