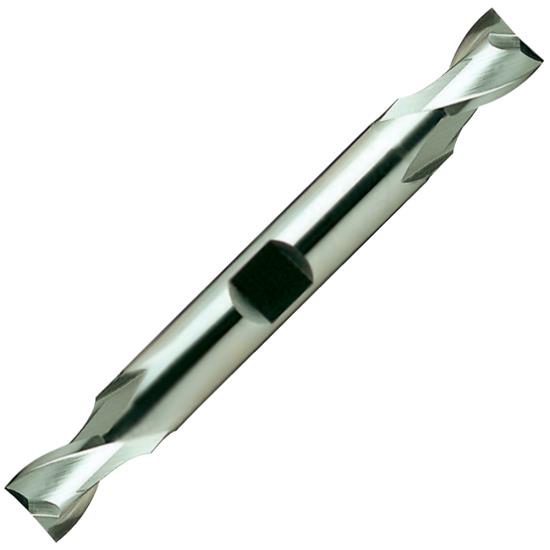

5/8" 2 Flute Square End Double End Regular Length End Mill, 1.125"LOC, 5/8"Shank w/Flat, 4-1/2"OAL. YG-1 TANK-POWER 30° Helix, HSS-PM ASP60, Bright Finish, For Steels, Stainless & Cast Iron to HRc45

5/8" 2 Flute Square End Double End Regular Length End Mill, 1.125"LOC, 5/8"Shank w/Flat, 4-1/2"OAL. YG-1 TANK-POWER 30° Helix, HSS-PM ASP60, Bright Finish, For Steels, Stainless & Cast Iron to HRc45
YG-1 TOOL CO.
E9984040
E9984040
E9984040
0.6250" 5/8"
Weight: 0.393 LBS
Brand: YG-1 TOOL CO.
$90.86
(31% off)
$63.09
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

5/8" 2Fl Reg Length Double End Bright Uncoated Asp60 Powdered Metal Tank-Power 30° Helix Center Cutting End Mill 1.125"Loc,5/8"Shank,4-1/2"Oal Tank-Power 30° Helix Center-Cutting Weldon Flat Shank Premium Asp60 Hss-Pm End Mill For Steels, Stainless Steel And Cast Iron Up To Hrc45. Yg-1 Part # E9984040

  • YG-1 TANK-POWER Series E9984: Inch size HSS-PM ASP60 powdered metal end mills, 30° Helix, center cutting, double end, square end, 2 flutes, Weldon Flat shank, regular length, available with bright finish or TiAlN (TYLON)-Futura coated
  • Faster feed & speed than normal HSS can be applied to hardened steels up to HRc 45.
  • YPM made by powder metallurgy makes much higher productivity possible.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
27
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
E9984040
Tool Diameter
0.6250" 5/8"
Length Of Cut
1.125"
Overall Length
4.500"
Shank Diameter
0.6250" 5/8"
Radius Size
Sharp
Number Of Flutes
2
Helix Angle
30°
End Style
Square
Tool Coating
None
Tool Substrate Material
Powdered Metal - ASP60 HSS-PM
Primary Application
General Purpose
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E9984
Single Or Double End
Double End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
TANK-POWER
Shank Type
Weldon Flat Shank
Helix Type
Equal Index
