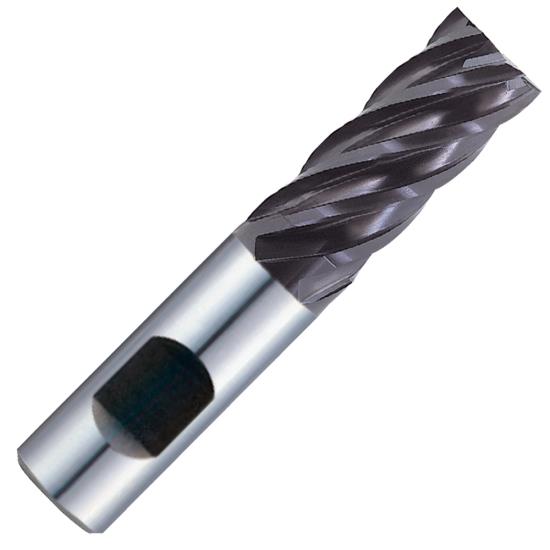

8mm 4 Flute Powdered Metal End Mill, 19mm LOC, 10mm Shank w/Flat, 69mm OAL 30° Helix JET-POWER, TiAlN Coated

8mm 4 Flute Powdered Metal End Mill, 19mm LOC, 10mm Shank w/Flat, 69mm OAL 30° Helix JET-POWER, TiAlN Coated
YG-1 TOOL CO.
EE515080
EE515080
EE515080
0.3150" 8mm
Weight: 0.06 LBS
Brand: YG-1 TOOL CO.
$61.48
(31% off)
$42.69
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

8Mm 4 Flute Powdered Metal End Mill, 19Mm Loc, 10Mm Shank W/Flat, 69Mm Oal 30° Helix Jet-Power 19Mm Loc,10Mm Shank,69Mm Oal Jet-Power Weldon Flat Shank 30° Helix Center-Cutting Powdered Metal End Mill Designed For Exotic And Low Hardness Materials Under Hrc45, Alloy Steels, Tool Steels, Carbon Steels, Prehardened Steels, Stainless Steel, Inconel, Nimonic, Etc... High Velocity Milling Operation And Good Surface Finishes. Yg-1 Part # Ee515080

  • YG-1 JET-POWER Series EE515: Metric size HSS-PM ASP60 powdered metal end mills, 30° Helix, center cutting, single end, square end, 4 and 6 flutes, Weldon Flat shank, 30° helix, short length, TiAlN coated
  • Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel, nimonic, etc...
  • High velocity milling operation and good surface finishes.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
28
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
EE515080
Tool Diameter
0.3150" 8mm
Length Of Cut
0.748" 19mm
Overall Length
2.716" 69mm
Shank Diameter
0.3937" 10mm
Radius Size
Sharp
Number Of Flutes
4
Helix Angle
30°
End Style
Square
Tool Coating
TiAlN
Tool Substrate Material
Powdered Metal - ASP60 HSS-PM
Primary Application
Titanium, Stainless, Alloy/Prehardened Steels to HRc45
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
EE515
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
JET-POWER
Shank Type
Weldon Flat Shank
Helix Type
Equal Index
