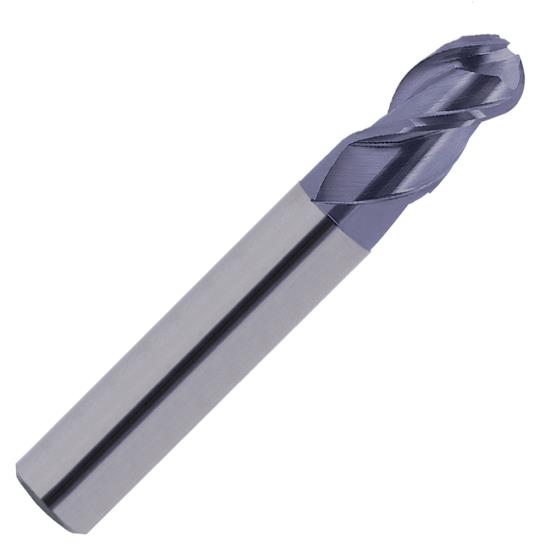

4mm 3 Flute Ball Nose Carbide End Mill, 6mm Plain Shank, 6mm LOC, 8mm Reach With Reduced Neck, 65mm OAL. YG-1 ALU-POWER 40° Helix, TiCN Coated For Aluminum

4mm 3 Flute Ball Nose Carbide End Mill, 6mm Plain Shank, 6mm LOC, 8mm Reach With Reduced Neck, 65mm OAL. YG-1 ALU-POWER 40° Helix, TiCN Coated For Aluminum 4mm 3 Flute Ball Nose Carbide End Mill, 6mm Plain Shank, 6mm LOC, 8mm Reach With Reduced Neck, 65mm OAL. YG-1 ALU-POWER 40° Helix, TiCN Coated For Aluminum 4mm 3 Flute Ball Nose Carbide End Mill, 6mm Plain Shank, 6mm LOC, 8mm Reach With Reduced Neck, 65mm OAL. YG-1 ALU-POWER 40° Helix, TiCN Coated For Aluminum
YG-1 TOOL CO.
EG908040
EG908040
EG908040
0.1575" 4mm
Weight: 0.027 LBS
Brand: YG-1 TOOL CO.
$71.12
(31% off)
$49.39
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

4Mm 3 Flute Ball Nose Carbide End Mill, 6Mm Plain Shank, 6Mm Loc, 8Mm Reach With Reduced Neck, 65Mm Oal. Yg-1 Alu-Power 40° Helix, Ticn Coated For Aluminum. Yg-1'S Alu-Power Carbide End Mills Are Designed For High Performance Silent Cutting Of Aluminum, Aluminum Alloys & Other Non-Ferrous Materials. Special Geometry Designed With Tightly Controlled Cylindrical Margin, Eccentric Primary Relief, Larger Chip Pockets And Polished Flutes Result In A High Rigidity Cutting Edge For Improved Surface Roughness And Excellent Chip Removal While Imparting An Excellent Mirror-Face Finish.

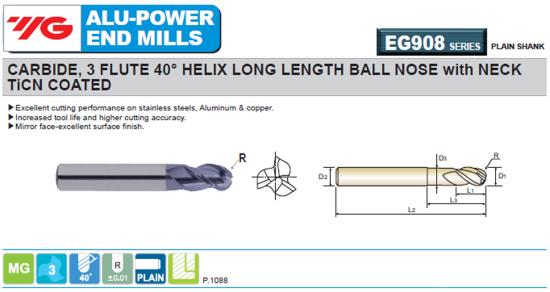

  • YG-1 ALU-POWER Series EG908: Metric Size Micrograin Carbide End Mills, 40° Helix, Plain Shank, 3 Flute, Stub Cut Length, Reduced Neck Diameter, Extended Reach, Ball Nose, TiCN Coated
  • Designed for the machining of aluminum, its alloys and non-ferrous materials.
  • Increased tool life and higher cutting accuracy.
  • Maximum stock removal, chip ejection and stability.
  • Excellent mirror-face surface finishes.
  • Reduced neck diameter prevents wall interference, facilitating step milling in deep pockets or long reach applications.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
52
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
EG908040
Tool Diameter
0.1575" 4mm
Length Of Cut
0.236" 6mm
Overall Length
2.559" 65mm
Shank Diameter
0.2362" 6mm
Length Below Shank
0.314" 8mm
Radius Size
Ball
Corner Radius
Ball
Number Of Flutes
3
Helix Angle
40°
End Style
Ball
Tool Coating
TiCN
Tool Substrate Material
Carbide
Primary Application
Aluminum Alloys
Max Reach
0.314" 8mm
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
EG908
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
ALU-POWER
Shank Type
Plain Shank
Helix Type
Equal Index
