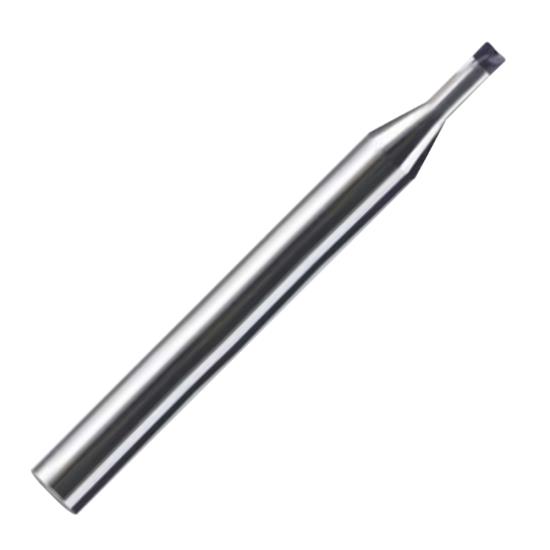

2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70

2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70 2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70 2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70 2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70 2mm 2 Flute With .10mm Corner Radius CBN Tip 4mm Carbide Shank End Mill, 1.2mm LOC, 10mm Reach With Reduced Neck, 50mm OAL. YG-1 CBN 0° Helix For Hardened & High Hardened Steels HRc50 To HRc70
YG-1 TOOL CO.
ESD02020100
ESD02020100
ESD02020100
0.0787" 2mm
Weight: 0.01 LBS
Brand: YG-1 TOOL CO.
$485.69
(33% off)
$323.79
each
Add To My Favorites
Technical Details & Downloads

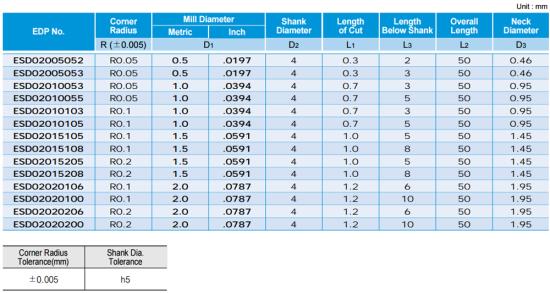

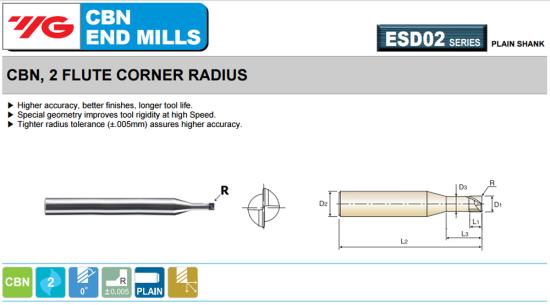

Technical/Extra Information Catalog Page Catalog Page
Product Description

2Mm 2 Flute With .10Mm Corner Radius Cbn Tip 4Mm Carbide Shank End Mill, 1.2Mm Loc, 10Mm Reach With Reduced Neck, 50Mm Oal. Yg-1 Cbn 0° Helix For Hardened & High Hardened Steels Hrc50 To Hrc70

  • YG-1 CBN (Cubic Boron Nitride) End Mills Series ESD02: Cubic boron nitride tipped 4mm carbide shank end mills, 50mm overall length, plain shank, 0° helix, center cutting, 2 flute, single end, corner radius, short flute length, reduced neck diameter, extended reach
  • Higher accuracy, better finishes, longer tool life.
  • Special geometry improves tool rigidity at high Speed.
  • Tighter radius tolerance (±0.005mm) assures highest accuracy.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
15
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
ESD02020100
Tool Diameter
0.0787" 2mm
Length Of Cut
0.047" 1.2mm
Overall Length
1.968" 50mm
Shank Diameter
0.1575" 4mm
Length Below Shank
0.393" 10mm
Radius Size
0.10mm
Corner Radius
0.10mm
Number Of Flutes
2
Helix Angle
0°
End Style
Radius
Tool Coating
CBN
Tool Substrate Material
CBN Tip/Carbide Shank
Primary Application
High Hardened Steels HRc50-70
Max Reach
0.393" 10mm
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Hand Helix Direction
Non-Helical
Series
ESD02
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
CBN
Shank Type
Plain Shank
Helix Type
Non-Helical
