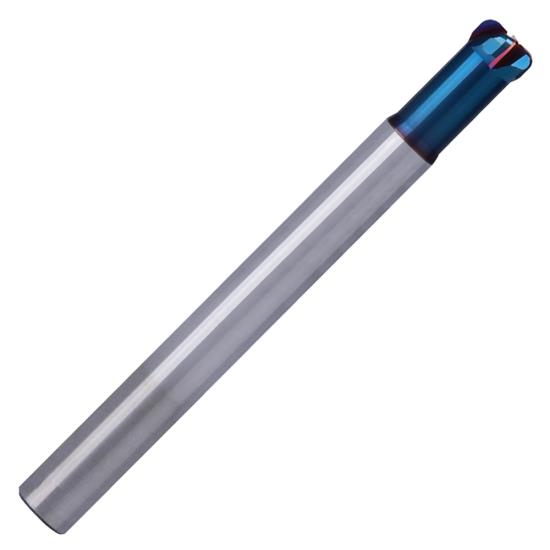

6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70

6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70 6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70 6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70 6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70

YG-1 TOOL CO.

G854062

0.2362" 6mm

Weight: 0.083 LBS

Brand: YG-1 TOOL CO.

$120.61

(35% off)

$78.40

each

Add To My Favorites

Technical Details & Downloads

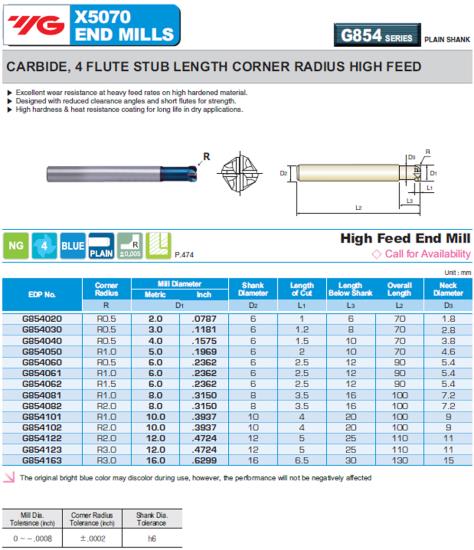

Technical/Extra Information Catalog Page Catalog Page

Product Description

6Mm 4 Flute High Feed Carbide End Mill, 1.50Mm Corner Radius, 6Mm Plain Shank, 2.5Mm Loc, 12Mm Reach With Reduced Neck, 90Mm Oal. Yg-1 X5070 Blue Coated For High Hardened Steels Hrc45 To Hrc70. Yg-1 X5070 Nano Blue Coated Nanograin Carbide End Mills Are Designed For High Precision High Speed Machining, Dry Cutting Hardened & High-Hardened Mold & Die Steels Hrc45 To Hrc70. Made From Premium Nanograin Carbide Substrate Combined With Yg-1'S Custom Tailored High Hardness, Heat Resistant Nano Blue Coating & Negative Rake Angles, These Tools Exhibit Superb Wear-Resistance & Long Life In Dry Machining Applications While Providing An Excellent Workpiece Surface Finish.

YG-1 X5070 Series G854: Metric size nanograin carbide high feed end mills, non-helical flutes, plain shank, center cutting, 4 flute, stub cut length, corner radius, reduced neck diameter, extended reach, naco blue coated
Designed to machine high hardened materials.
Excellent wear resistance at heavy feed rates.
High hardness and heat resistant naco blue coating.
Suitable for dry, high speed cutting.
Deep slotting is possible by reduced neck.
Corner radius for protection against chipping in high feed applications.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

100

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: G854062
Tool Diameter: 0.2362" 6mm
Length Of Cut: 0.098" 2.5mm
Overall Length: 3.543" 90mm
Shank Diameter: 0.2362" 6mm
Length Below Shank: 0.472" 12mm
Radius Size: 1.50mm
Corner Radius: 1.50mm
Number Of Flutes: 4
Helix Angle: 0°
End Style: Radius
Tool Coating: Nano BLUE
Tool Substrate Material: Carbide
Primary Application: Hardened and High Hardened Steels HRc45-70
Max Reach: 0.472" 12mm
Hand Cutting Direction: Right Hand
Inch Or Metric: Metric
Country of Origin: Korea, Republic of
Hand Helix Direction: Non-Helical
Series: G854
Single Or Double End: Single End
Center Cutting: Center Cutting
Type Of End Mill: High Feed
Model: X5070 BLUE High Feed
Shank Type: Plain Shank
Helix Type: Equal Index

6mm 4 Flute High Feed Carbide End Mill, 1.50mm Corner Radius, 6mm Plain Shank, 2.5mm LOC, 12mm Reach With Reduced Neck, 90mm OAL. YG-1 X5070 Blue Coated For High Hardened Steels HRc45 to HRc70
