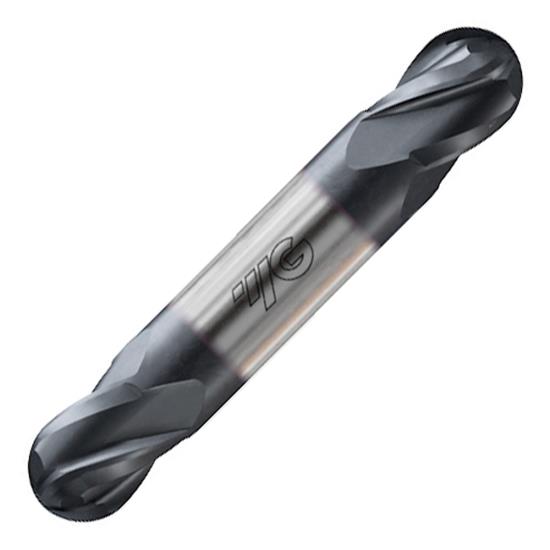

5/16" 4 Flute Ball Nose Stub Length Double End Carbide End Mill, 5/16" Plain Shank, 0.500" LOC, 2.500" OAL. YG-1 BasiX 30° Helix, X-Coated For General, Multi-Purpose Use

5/16" 4 Flute Ball Nose Stub Length Double End Carbide End Mill, 5/16" Plain Shank, 0.500" LOC, 2.500" OAL. YG-1 BasiX 30° Helix, X-Coated For General, Multi-Purpose Use
YG-1 TOOL CO.
G9I01909N
G9I01909N
G9I01909N
0.3125" 5/16"
Weight: 0.0761 LBS
Brand: YG-1 TOOL CO.
$79.34
(31% off)
$55.09
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

5/16" 4 Flute Ball Nose Stub Length Double End Carbide End Mill, 5/16" Plain Shank, 0.500" Loc, 2.500" Oal. Yg-1 Basix 30° Helix, X-Coated For General, Multi-Purpose Use

  • YG-1 BasiX Series G9I01: Inch size general purpose micrograin carbide end mills, plain shank, 30° helix, center cutting, 4 flute, double end, ball nose, stub length, X-coated
  • Suitable for cutting high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a high percentage of silicon and abrasive plastics.
  • High Technology X-Coating Developed by YG-1, X-Coating is an AlCr Based Coating perfect for excellent life and versatile performance for a wide range of materials

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
49
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
G9I01909N
Tool Diameter
0.3125" 5/16"
Length Of Cut
0.500"
Overall Length
2.500"
Shank Diameter
0.3125" 5/16"
Length Below Shank
0.000"
Radius Size
Ball
Corner Radius
Ball
Number Of Flutes
4
Helix Angle
30°
End Style
Ball
Tool Coating
X-Coating (AlCr Based)
Tool Substrate Material
Carbide
Primary Application
General Purpose
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
G9I01
Single Or Double End
Double End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
BASIX CARBIDE END MILL
Shank Type
Plain Shank
Helix Type
Equal Index
