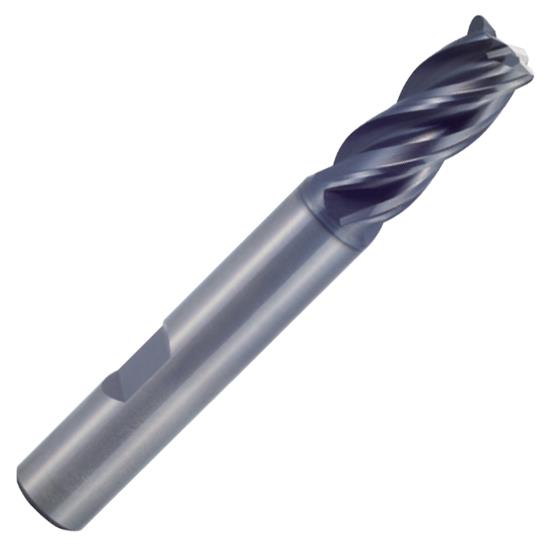

3mm 4FL w/.3mm Corner Radius Carbide End Mill, 6mm Shank w/Flat, 8mm LOC, , 57mm OAL. V7 PLUS A Multi-Helix Y-Coated For Steels, Cast Iron, Stainless & Exotics to HRc40

3mm 4FL w/.3mm Corner Radius Carbide End Mill, 6mm Shank w/Flat, 8mm LOC, , 57mm OAL. V7 PLUS A Multi-Helix Y-Coated For Steels, Cast Iron, Stainless & Exotics to HRc40
YG-1 TOOL CO.
GMF59030
GMF59030
GMF59030
0.1181" 3mm
Weight: 0.013 LBS
Brand: YG-1 TOOL CO.
$59.30
(31% off)
$41.18
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

3Mm 4Fl W/.3Mm Corner Radius Carbide End Mill, 6Mm Shank W/Flat, 8Mm Loc, , 57Mm Oal. V7 Plus A Multi-Helix Y-Coated For Steels, Cast Iron, Stainless & Exotics To Hrc40. Yg-1 Is The Undisputed World Leader In Carbide End Mill Offerings. And Now, With Our Newly Expanded V7 Plus A Line, You Have Even More High-Performance Choices Than Ever Before. Choose From A Full Array Of 4 Flute And 6 Flute Standard-Stocked Tools For Excellent Performance In Stainless Steels, Mild Steels, Low/Medium Hardness Materials And Exotic Materials To Boot. We Didn't Create The Great Cutting Performance Of Our V7 Plus A End Mills Line By Just Doing What Others Have Done. We Engineered Our Line From The Tip Of Flute To End Of Shank With Performance-Enhancing Technology In Mind. It’S What Makes The V7 Plus A Line The Top Choice In End Mill Performance. The V7 Plus A’S Premium-Grade Carbide Substrate And Advanced Geometry Provides: Excellent Material Removal Rates And Surface Finishes; Unequal Indexing For Reduced Chatter (Harmonics) And Improved Stability; Advanced Coating For Superior Performance And Tool Life; Improved Flute Geometry For Impressive Chip Formation And Evacuation; Noticeably Smooth Operation In High-Speed Machining And Peel-Milling Applications; Superior Slotting And Profiling In Most Ferrous Materials For More Flexible Use; And Excellent Performance In High-Speed Trochoidal Milling Applications For Improved Accuracy, Reduced Vibration And Better Heat Displacement.

  • YG-1 V7 PLUS A 4 Flute Series GMF59: Metric size micrograin carbide end mills, Weldon Flat shank, 4 flutes, 35°/37° multi-helix, unequal index, center cutting, single end, corner radius, standard length, Y-coated (AlCr based)
  • Special flute geometry and multiple helix eliminate vibrations
  • Excellent performance for stainless steels, mild steels, cast iron, low/medium hardness materials and all exotic materials up to HRc40
  • Advanced coating for superior performance and tool life

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
28
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
GMF59030
Tool Diameter
0.1181" 3mm
Length Of Cut
0.314" 8mm
Overall Length
2.244" 57mm
Shank Diameter
0.2362" 6mm
Length Below Shank
0.000"
Radius Size
0.30mm
Corner Radius
0.30mm
Number Of Flutes
4
Helix Angle
35°/37° Multi-Helix
End Style
Radius
Tool Coating
Y-Coating (AlCr Based)
Tool Substrate Material
Carbide
Primary Application
Steels, Cast Iron, Stainless, Hi-Temp Alloys to HRc40
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Metric
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
GMF59
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
V7 MILL PLUS A
Shank Type
Weldon Flat Shank
Helix Type
Unequal Index
