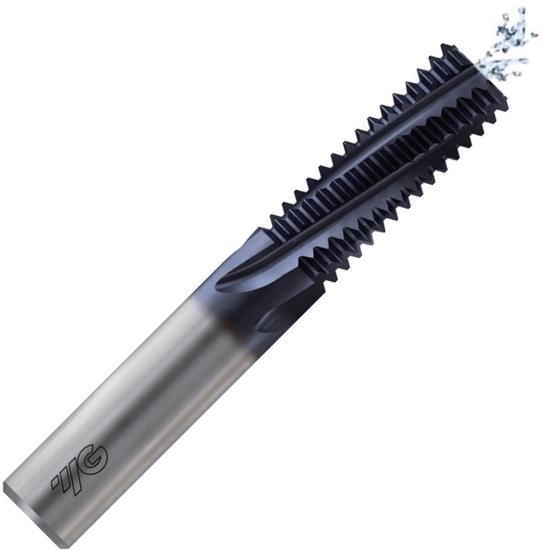

M18 x 1.50 Multi-Form Carbide Thread Mill, Coolant-Through, 4 Flutes, 15° Right Hand Spiral, Right Hand Cut, TiAIN Coated - 1.250" Thread Length x 1/2" Shank x 3.5" OAL

YG-1 TOOL CO.

L421D670

Weight: 0.2752 LBS

Brand: YG-1 TOOL CO.

$387.61

(34% off)

$255.82

each

Add To My Favorites

Technical Details & Downloads

Catalog Page Catalog Page

Product Description

Yg-1 Carbide Thread Mills Are Designed With A 15° Helix, Right Hand Spiral, Right Hand Cut For Milling Internal Threads And Can Produce Threads Of The Same Pitch In A Wide Range Of Holes Sizes. Yg-1 Thread Mills Are Universally Applicable In Virtually Any Iso Material Group. The Same Thread Mill Can Produce Right Hand Threads And Left Hand Threads With A Simple Program Change. The Same Thread Mill Can Produce Any Class Of Fit. Yg-1 Thread Mills Are Capable Of Producing Full Threads Right To The Bottom Of A Blind Hole.

YG-1 Solid Carbide Thread Mills For Internal Metric Threads, Series L421D:
For milling 60° internal Metric threads per DIN13
With axial coolant hole through the tool for superior chip evacuation in blind holes
15° helix, right hand spiral, right hand cut
Multi-form thread profile enables thread milling in a single pass
Produces right hand threads and left hand threads
For thread milling through holes or blind holes
Capable of producing full threads to the bottom of the hole
The same thread mill can produce any Class of Fit
Hold tight tolerance pitch diameters with program offset changes
Low cutting forces make thread mills a perfect solution for underpowered machines
No issues with chip control as the short chips eliminate bird nesting typically associated with spiral flute taps
Very low chance of scrap with the ease of removing broken tools from the workpiece
Excellent thread finish with greater control over cutting condition than with tapping
Made from premium micro grain carbide substrate with PVD TiAlN coating

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: L421D670
Cutter Diameter: 0.490"
Thread Size: M18 x 1.50
Overall Length: 3.500"
Shank Diameter: 0.5000" 1/2"
Number Of Flutes: 4
Helix Angle: 15°
Thread Direction: Right or Left
Thread Length: 1.250"
Thread Type: Metric
Tool Coating: TiAIN
Tool Substrate Material: Carbide
Hand Cutting Direction: Right Hand Cut
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand Spiral
Series: L421D
Type: Multi-Form
Shank Type: Plain Shank
Threads Per Inch: N/A
Thread Pitch: 1.50
Coolant Through: With Coolant Hole
