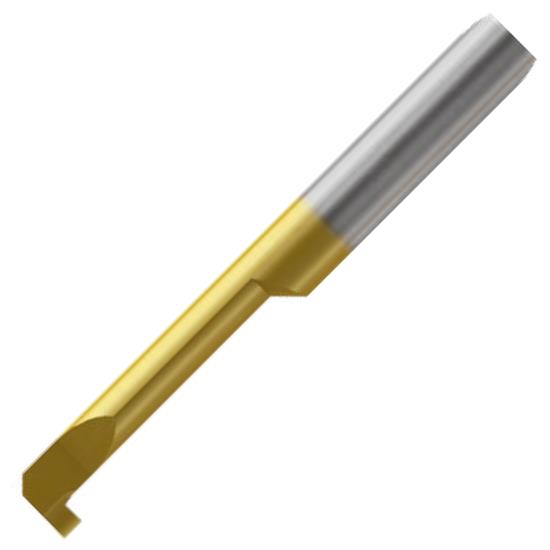

NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length

NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length NCGS6R-62.25-117x18-YG812: .046" Width x .071" Depth RH Square Groover, .244" Minimum Bore x .984" Usable Length, NanoCut Quick Change. 6mm Shank, 1.201" Out Of Holder Length
YG-1 TOOL CO.
NCGS06R6225117T
NCGS06R6225117T
NCGS06R6225117T
NCGS6R-62.25-117x18-YG812
Weight: 0.049 LBS
Brand: YG-1 TOOL CO.
$70.21
(16% off)
$59.09
each
Add To My Favorites Coupon Available
Technical Details & Downloads

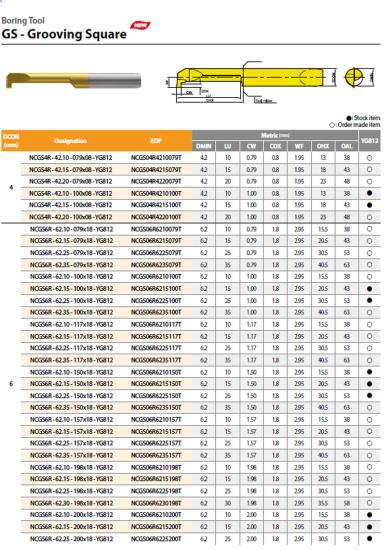

Catalog Page
Product Description

At Present, As Demand For Small Parts (Camera Lens, Mobile Phone Parts) And Medical Instruments (Implants) Increases, Demand For Small-Diameter Products Capable Of High-Precision Processing Is Increasing. The New Yg-1 Nanocut Is A Quick Change Turning Tool System For Small Bore Applications Down To 1Mm (.039") Minimum Bore. Holders Supplied With Internal Coolant For Longer Tool Life And Enhanced Chip Evacuation. Secure Connection Design: Pin + Slant Positioning For High Repeatability, Reduced Machine Down Time And Lower Machining Cost With Longer Tool Life.

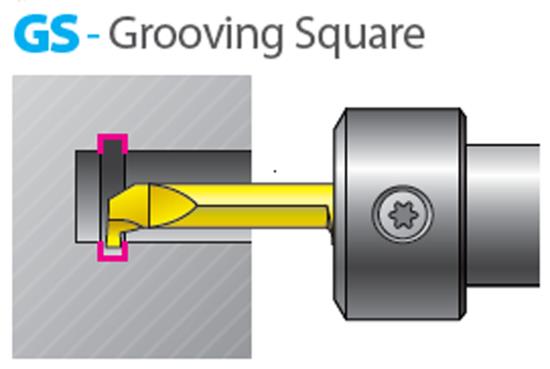

  • NanoCut GS - Square Internal Grooving Insert
  • The new YG-1 NanoCut is a quick change turning tool system for small bore applications down to 1mm (.039") minimum bore.

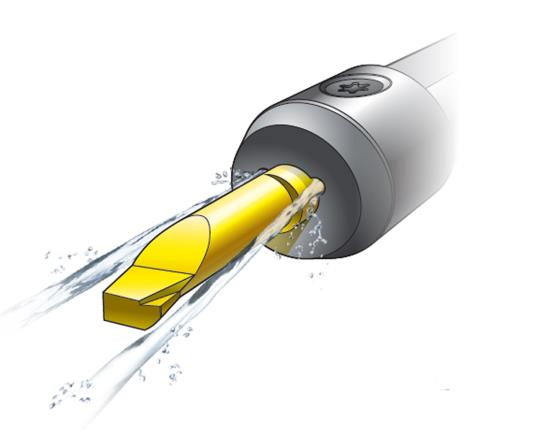

  • Holders Supplied With Internal Coolant for Longer Tool life and Enhanced Chip Evacuation
  • Secure Connection Design: Pin + Slant Positioning
  • High Repeatability
  • Reduced Machine Down Time
  • Submicron Grade Carbide Substrate Material for high toughness and wear resistance realizes high precision machining
  • Longer Tool Life
  • Lower Machining Cost

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
NCGS06R6225117T
Minimum Bore
0.244"
Groove Width
0.046"
Shank Diameter
6mm
Radius Size
Sharp Corner
Tool Coating
TiN
Tool Substrate Material
Carbide
Primary Application
Internal Grooving, Square End
Hand
Right Hand
Hand Cutting Direction
Right Hand
Protrusion Length
1.201" Out Of Holder
Country of Origin
Korea, Republic of
Series
GS
Projection Length
0.071" Groove Depth
Maximum Bore Depth
0.984"
