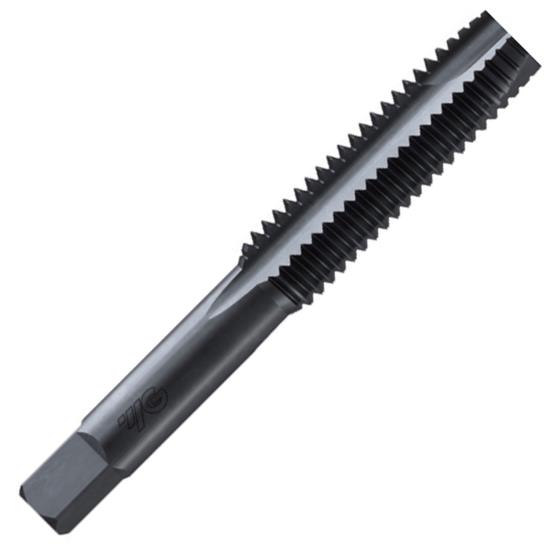

M1.6 x .35 D3, 2 Flute Spiral Point Plug Standard Tap, YG TAP GENERAL, HSS With Steam Oxide Finish For General Purpose

M1.6 x .35 D3, 2 Flute Spiral Point Plug Standard Tap, YG TAP GENERAL, HSS With Steam Oxide Finish For General Purpose M1.6 x .35 D3, 2 Flute Spiral Point Plug Standard Tap, YG TAP GENERAL, HSS With Steam Oxide Finish For General Purpose M1.6 x .35 D3, 2 Flute Spiral Point Plug Standard Tap, YG TAP GENERAL, HSS With Steam Oxide Finish For General Purpose
YG-1 TOOL CO.
T6217093
T6217093
T6217093
M1.6 x .35
Weight: 0.01 LBS
Brand: YG-1 TOOL CO.
$38.29
(31% off)
$26.59
each
Add To My Favorites
Technical Details & Downloads

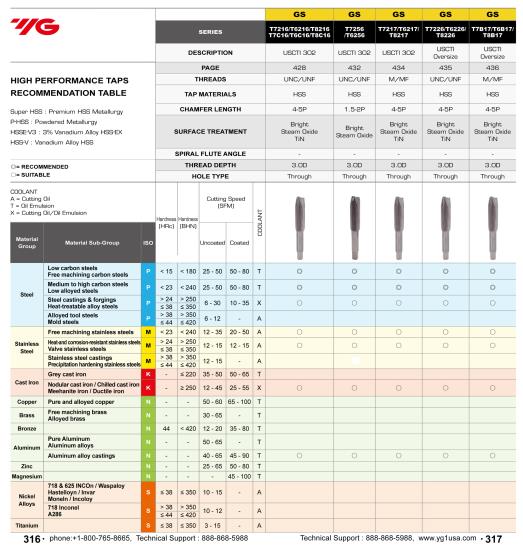

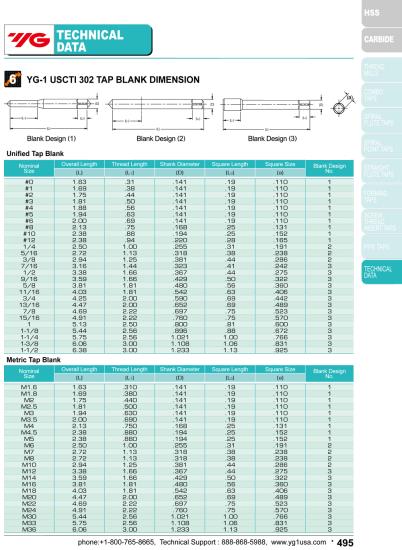

Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Yg Tap General Series T6217: Standard Tap For General Purpose Use. Taps Are Produced From Premium Hss (High Speed Steel) And Come With Steam Oxide Finish. Taps Are Right Hand Cut, Right Hand Thread With Spiral Point. Spiral Point Plug Style Taps With 4-5 Pitch Lead Threads Are Primarily Applicable For Tapping Through Holes At Depths To 3.0Xd. Uscti Shank Standard Tap With No Coolant Hole.

  • YG-1 YG TAP GENERAL Series T6217: Standard Tap For General Purpose Use
  • Made from Premium HSS (High Speed Steel) With Steam Oxide Finish
  • Right Hand Cut, Right Hand Thread with Spiral Point
  • Spiral Point Plug Style with 4-5 Pitch Lead threads
  • Primarily applicable for tapping Through Holes at depths to 3.0xD
  • USCTI Shank Standard Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
23
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
T6217093
Thread Size
M1.6 x .35
Number Of Flutes
2
Helix Angle
N/A
Type Of Tap
Standard Tap
Thread Direction
Right Hand
Thread Limit
D3
Thread Type
Metric
Tap Shank Type
USCTI Shank Standard Tap
Type Of Hole To Tap
Through Hole
Tool Coating
Steam Oxide Finish
Tool Substrate Material
HSS (High Speed Steel)
Primary Application
General Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
N/A
Series
T6217
Style
Plug
Flute End Type
Spiral Point
Thread Chamfer
4-5 Pitch Lead
Model
YG TAP GENERAL
Size
0.0630" M1.6 x .35
Type
Standard Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
3.0xD
