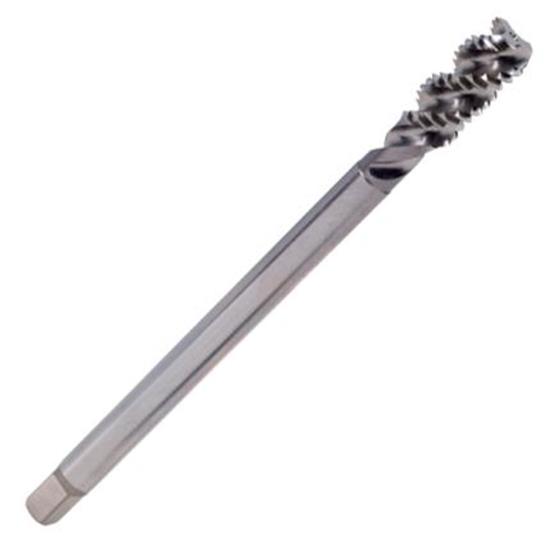

7/16-14 H3, 3 Flute, 50° Spiral Flute Bottoming 6" Extension CNC Tap, YG TAP GENERAL, HSS With Bright Finish For General Purpose

YG-1 TOOL CO.

T7D02523

7/16-14 0.4375 x 6"

Weight: 0.265 LBS

Brand: YG-1 TOOL CO.

$86.89

(31% off)

$60.34

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page

Product Description

Yg-1 Yg Tap General Series T7d02: Extension Tap For General Purpose Use. Taps Are Produced From Premium Hss (High Speed Steel) And Come With Bright Finish. Taps Are Right Hand Cut, Right Hand Thread With 50° Right Hand Spiral, Spiral Flute Bottoming Style Taps With 1.5-2 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 2.5Xd. 6" Long Uscti Shank Cnc Tap With No Coolant Hole.

YG-1 YG TAP GENERAL Series T7D02: Extension Tap For General Purpose Use
Made from Premium HSS (High Speed Steel) With Bright Finish
Right Hand Cut, Right Hand Thread with 50° Right Hand Spiral Flute
Spiral Flute Bottoming Style with 1.5-2 Pitch Lead threads
Primarily applicable for tapping Blind Holes at depths to 2.5xD
6" Long USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: T7D02523
Thread Size: 7/16-14 0.4375
Number Of Flutes: 3
Helix Angle: 50°
Type Of Tap: Extension Tap
Thread Direction: Right Hand
Thread Limit: H3
Thread Type: UN
Tap Shank Type: 6" Long USCTI Shank CNC Tap
Type Of Hole To Tap: Blind Hole
Tool Coating: Bright Finish
Tool Substrate Material: HSS (High Speed Steel)
Primary Application: General Purpose
Hand Cutting Direction: Right Hand
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: T7D02
Style: Bottoming
Flute End Type: Spiral Flute
Thread Chamfer: 1.5-2 Pitch Lead
Model: YG TAP GENERAL
Size: 0.4375" 7/16-14 x 6"
Type: Extension Tap, 6" Long
Coolant Through: No Coolant Hole
Max Depth Of Thread: 2.5xD
