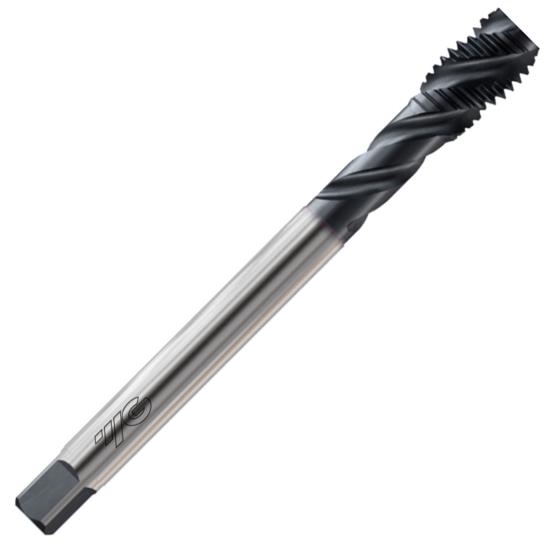

M5 x .8 D4, 3 Flute, 45° Sprial Flute, 1-2 Pitch Lead Bottoming High Performance DIN Length-ANSI Shank CNC Tap, PRIME TAP, HSS-PM With X-Coating For Multi-Purpose

M5 x .8 D4, 3 Flute, 45° Sprial Flute, 1-2 Pitch Lead Bottoming High Performance DIN Length-ANSI Shank CNC Tap, PRIME TAP, HSS-PM With X-Coating For Multi-Purpose
YG-1 TOOL CO.
TRF24284GS
TRF24284GS
TRF24284GS
M5 x .8 DIN LENGTH
Weight: 0.024 LBS
Brand: YG-1 TOOL CO.
$50.73
(31% off)
$35.23
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information
Product Description

The New Din Length, Ansi Cnc Shank Yg-1 Prime Tap With X-Coating Was Developed For Reliable High Performance Cnc Machining In Various Ductile Materials. Yg-1'S Special Grinding Process Provides A Unique Geometry For Spiral Flute And Spiral Point Taps With Optimal Flute Space For Improved Chip Evacuation. Premium Hss-Pm (Powder Metallurgy) Is Applied For A Tough, Chip-Resistant Cutting Edge, Providing Long Tool Life And Reliable Thread Finish. Yg-1'S High Performance X-Coating (Alcrn Based) Provides High Heat And Wear Resistance, Unrestricted Chip Flow, Consistent Performance, Long Tool Life And Improved Thread Finish.

  • Prime Tap for high and reliable performance in various ductile materials
  • Special thread structure provides reduction in torque, wear, and the risk of over feeding as compared to conventional taps
  • HSS-PM Powdered Metal Technology for a tough, chipping resistant cutting edge for long tool life and reliable thread finish
  • DIN length, ANSI (USCTI) CNC Shank Taps provide a slightly longer reach as compared to standard ANSI shank taps
  • Extra short threaded body and recess minimizes bird nesting, reduces chipping and provides improved thread finishes
  • Optimized edge preparation prevents chipping for consistent performance and process stability
  • Optimized flute geometry provides for excellent chip flow
  • Increased tool life as a result of an optimum combination of material, geometry, and coating which gives unrestricted chip flow
  • YG-1’s High Performance X-Coating (AlCrN Based) for high heat and wear resistance

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
86
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
TRF24284GS
Thread Size
M5 x .8
Number Of Flutes
3
Helix Angle
45°
Type Of Tap
CNC Tap
Thread Direction
Right Hand
Thread Limit
D4
Thread Type
Metric
Tap Shank Type
DIN Length USCTI Shank CNC Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
X-Coating (AlCrN Based)
Tool Substrate Material
HSS-PM (Powdered Metallurgy HSS)
Primary Application
High Performance Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
TRF24
Style
Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
1-2 Pitch Lead
Model
PRIME TAP
Size
0.1969" M5 x .8 DIN LENGTH
Type
CNC Tap, DIN Length
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
