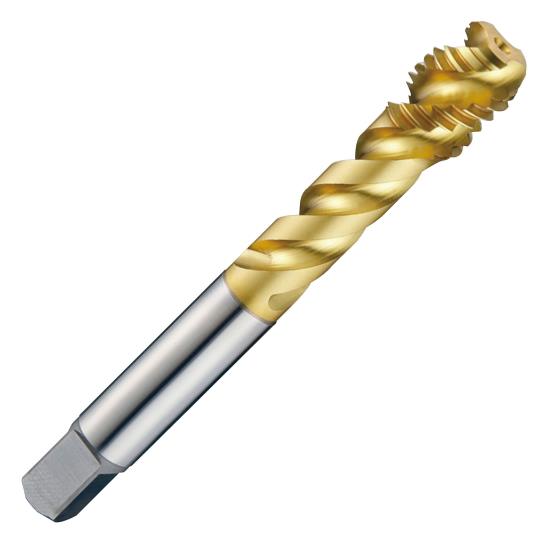

12-24 H3, 3 Flute, 45° Spiral Flute Modified Bottoming CNC Tap, SYNCHRO TAP, HSS-PM With TiN Coating For Rigid High Speed Tapping

12-24 H3, 3 Flute, 45° Spiral Flute Modified Bottoming CNC Tap, SYNCHRO TAP, HSS-PM With TiN Coating For Rigid High Speed Tapping
YG-1 TOOL CO.
TTS65363
TTS65363
TTS65363
12-24 0.2160
Weight: 0.027 LBS
Brand: YG-1 TOOL CO.
$34.94
(31% off)
$24.26
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Synchro Tap Series Tts65: Cnc Tap For High Speed Multi-Purpose Use. Taps Are Produced From Premium Hss-Pm (Powdered Metallurgy Hss) And Come With Tin Coating. Taps Are Right Hand Cut, Right Hand Thread With 45° Right Hand Spiral, Spiral Flute Modified Bottoming Style Taps With 2-3 Pitch Lead Threads Are Primarily Applicable For Tapping Blind Holes At Depths To 2.5Xd. Uscti Shank Cnc Tap With No Coolant Hole.

  • YG-1 SYNCHRO TAP Series TTS65: CNC Tap For High Speed Multi-Purpose Use
  • Made from Premium HSS-PM (Powdered Metallurgy HSS) With TiN Coating
  • Right Hand Cut, Right Hand Thread with 45° Right Hand Spiral Flute
  • Spiral Flute Modified Bottoming Style with 2-3 Pitch Lead threads
  • Primarily applicable for tapping Blind Holes at depths to 2.5xD
  • USCTI Shank CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
15
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
TTS65363
Thread Size
12-24 0.2160
Number Of Flutes
3
Helix Angle
45°
Type Of Tap
CNC Tap
Thread Direction
Right Hand
Thread Limit
H3
Thread Type
UN
Tap Shank Type
USCTI Shank CNC Tap
Type Of Hole To Tap
Blind Hole
Tool Coating
TiN Coated
Tool Substrate Material
HSS-PM (Powdered Metallurgy HSS)
Primary Application
High Speed Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
TTS65
Style
Modified Bottoming
Flute End Type
Spiral Flute
Thread Chamfer
2-3 Pitch Lead
Model
SYNCHRO TAP
Size
0.2160" 12-24
Type
CNC Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
2.5xD
