The Yg-1 I-Xmill Is A High Precision Indexable Milling System For Copy Milling And 3-D Profiling Utilizing Steel Or Carbide Holders And Precision Exchangeable Coated Carbide Inserts. Two Types Of Holders And Inserts Are Available: Ball End And Corner Radius. Holders Are Available With Straight Necks Or Tapered Necks In Short, Regular, Intermediate Or Long Lengths. For Maximum Rigidity And The Best Surface Finishes Use The Shortest Holder Possible. Use Ball Inserts With Ball Holders And Corner Radius Inserts With Corner Radius Holders. Corner Radius Inserts May Be Used With Ball Holders, But For The Highest Precision And Maximum Insert Rigidity, It Is Recommended To Use A Corner Radius Holder. Inserts And Holders Are Sold Separately.

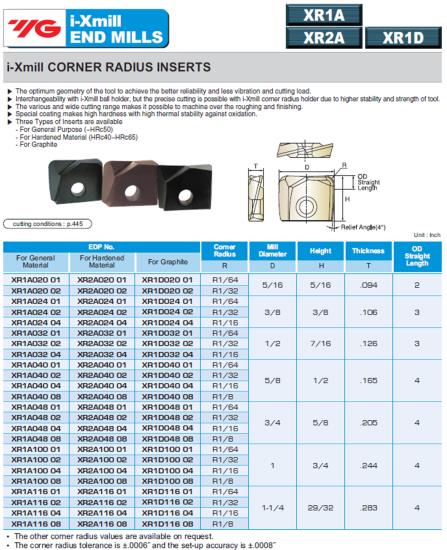

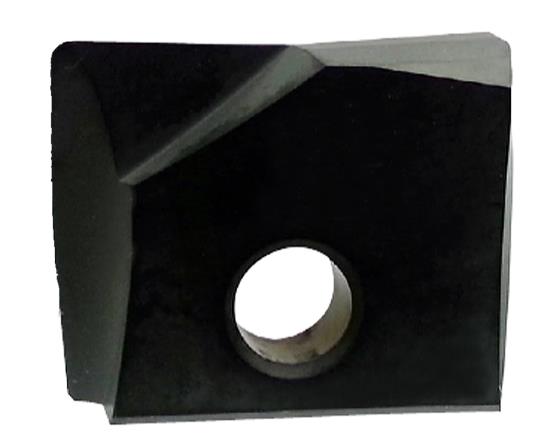

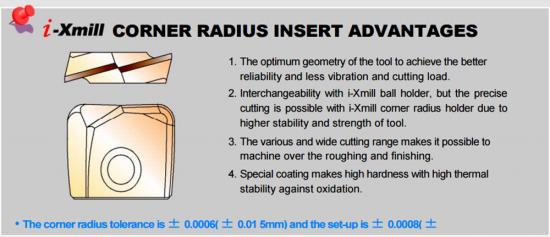

• i-Xmill Corner Radius Insert Features
• Optimized geometry achieves better reliability with reduced vibration and lower cutting loads
• Wide cutting range allows for use in roughing and finishing operations
• Special coating combines high hardness with high thermal stability against oxidation offering superior wear resistance at faster feeds and speeds
