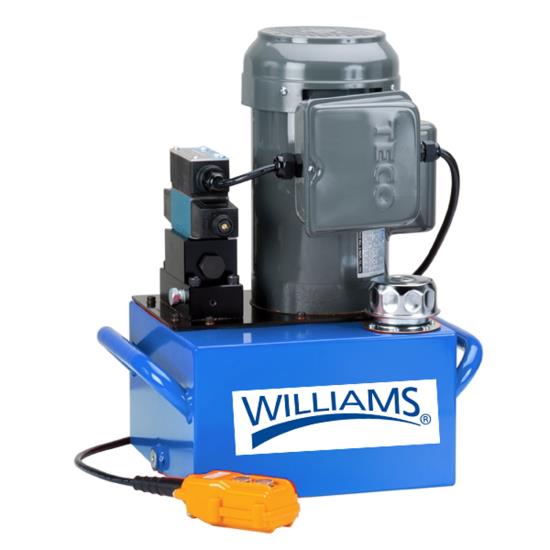

1.0 Hp Electric 115V 10,000 psi 2 Speed Hydraulic Pump With 4 Way, 3 Position Solenoid Valve With 10' Remote Control For Double Acting Cylinders. Oil Capacity: 2 Gallons. Williams® #JHW5ES10H2GR

This Williams Item can take 3 - 7 Business Days to ship, when it's shipped we will Email you a Tracking Number.

This vendor requires us to bring the item into our Florida warehouse for the following states: PR,AL,AK,AZ,CO,CT,DC,HI,LA,ME,MD,MA,MS,MO,NM,NY,OR,VA,ID,SC before shipping to you.

WILLIAMS INDUSTRIAL

JHW5ES10H2GR

UPC: 662459946539

Weight: 73 LBS

Brand: WILLIAMS INDUSTRIAL

$16,565.00

(53% off)

$7,761.37

each

Add To My Favorites

Technical Details & Downloads

Catalog Page

Product Description

1.0 Hp Electric 115V 10,000 Psi 2 Speed Hydraulic Pump With 4 Way, 3 Position Solenoid Valve With 10' Remote Control For Double Acting Cylinders. Oil Capacity: 2 Gallons. Williams® #Jhw5es10h2gr

ELECTRIC PUMPS WITH SOLENOID VALVE
Quiet operation meets OSHA regulations (80dBA)
2 speed operation allows for faster cylinder advance
Full load starting capacities
Internal filter keeps contamination from damaging pump
Rugged durable design meets the demands of industrial applications
Precision components to minimize wear and improve overall dependability
Designed to minimize the number of moving parts and maximize overall pump efficiency
Ideal for applications where a remote control is required
10 foot hand held remote controls the solenoid valve
Metal reservoirs are made of steel or aluminum alloy and resists cracks and leaking

This item is part of our complete offering of Williams Industrial Tools, a trusted USA brand known for high-quality hand tools, sockets, torque tools, and industrial-grade equipment designed for durability and professional use. Williams tools are built to meet the demands of automotive, industrial, and maintenance applications, delivering consistent performance and long service life. Browse our full selection of Williams Tools, including both factory stock and locally stocked inventory, or explore our Williams Super Store – Florida Stock for fast shipping and same-day pickup options to keep your operations running efficiently.

Made in Taiwan

WILLIAMS INDUSTRIAL Brand Home

Shipping & Delivery Options

MIDLAND, GEORGIA, USA

UPS
USPS

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$200.00	Standard Freight (5 - 7 days)	$60.00	2000 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$100.00 MINIMUM ORDER

Ships within 3 - 5 Business Days. We will Email you a Tracking Number when you order ships.

Factory Stock

Free Shipping

Additional Product Details

Technical Details

Manufacturer: WILLIAMS INDUSTRIAL
Manufacturer Part Number: JHW5ES10H2GR
Country of Origin: Taiwan
Style: 2 Speed Double Acting
Brand: Williams
Type: Electric Pump
Motor Size: 1.0 h.p.
Motor Phase: Single Phase
Motor Voltage: 115V AC
Current Draw: 12 amps
Sound Level: 80 dba
Valve Style: Solenoid Valve With 10' Remote
Valve Type: 4 Way, 3 Position
Valve Function: Advance/Hold/Return
Maximum Output Pressure: 10,000 psi
Used With Cylinder Type: Double Acting
Pump Type: Electric Powered
Oil Outlet Port Size: 3/8-18 NPTF
Pump Oil Capacity: 2 Gallons
Pressure Rating 1st Stage: 700 psi
Pressure Rating 2nd Stage: 10,000 psi
Oil Output Flow Rate 1st Stage: 311 cu in/min
Oil Output Flow Rate 2nd Stage: 37 cu in/min
Remote Type: Wired Pendant
Remote Style: 2 Button
Remote Function: Advance/Hold/Return

1.0 Hp Electric 115V 10,000 psi 2 Speed Hydraulic Pump With 4 Way, 3 Position Solenoid Valve With 10' Remote Control For Double Acting Cylinders. Oil Capacity: 2 Gallons. Williams® #JHW5ES10H2GR
