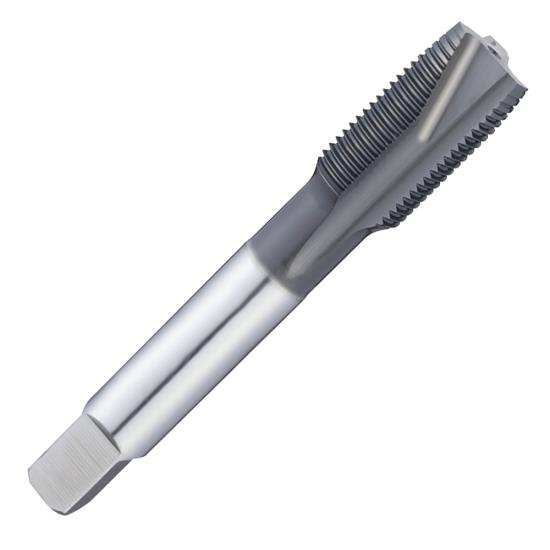

8-32 UNC 2B H3 Screw Thread Insert Tap, 3 Flute Spiral Point Plug CNC STI Spiral Tap, HSS With Hardslick Coating For General Purpose

8-32 UNC 2B H3 Screw Thread Insert Tap, 3 Flute Spiral Point Plug CNC STI Spiral Tap, HSS With Hardslick Coating For General Purpose 8-32 UNC 2B H3 Screw Thread Insert Tap, 3 Flute Spiral Point Plug CNC STI Spiral Tap, HSS With Hardslick Coating For General Purpose 8-32 UNC 2B H3 Screw Thread Insert Tap, 3 Flute Spiral Point Plug CNC STI Spiral Tap, HSS With Hardslick Coating For General Purpose 8-32 UNC 2B H3 Screw Thread Insert Tap, 3 Flute Spiral Point Plug CNC STI Spiral Tap, HSS With Hardslick Coating For General Purpose
YG-1 TOOL CO.
SI282
SI282
SI282
8-32 0.1640 STI
Weight: 0.014 LBS
Brand: YG-1 TOOL CO.
$22.30
(25% off)
$16.76
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

Yg-1 Screw Thread Insert Tap Series Si: Un Screw Thread Insert Tap For General Purpose Use. Taps Are Produced From Premium Hss (High Speed Steel) And Come With Hardslick Coating. Taps Are Right Hand Cut, Right Hand Thread With Spiral Point. Spiral Point Plug Style Taps With 4-5 Pitch Lead Threads Are Primarily Applicable For Tapping Through Holes At Depths To 3.0Xd. Uscti Shank Sti Spiral Cnc Tap With No Coolant Hole.

  • YG-1 SCREW THREAD INSERT TAP Series SI: UN Screw Thread Insert Tap For General Purpose Use
  • Made from Premium HSS (High Speed Steel) With Hardslick Coating
  • Right Hand Cut, Right Hand Thread with Spiral Point
  • Spiral Point Plug Style with 4-5 Pitch Lead threads
  • Primarily applicable for tapping Through Holes at depths to 3.0xD
  • USCTI Shank STI Spiral CNC Tap With No Coolant Hole

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
  • UPS
  • USPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
No Minimum UPS Blue 2 Business Days $15.99 8 LBS
$50.00 UPS Blue 2 Business Days $19.99 10 LBS
$50.00 UPS Blue 2 Business Days $32.99 15 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
UPS Ships till 5:30 p.m. & USPS ships till 4 p.m. Eastern Standard Time for same day shipping Monday-Friday except on holidays.
Any backorders for orders placed online will be shipped with no additional freight charges.
Florida Stock
3
Add to Cart
Factory Stock
100
$16.76
each
Add to Cart
More Info

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
SI282
Thread Size
8-32 0.1640
Number Of Flutes
3
Helix Angle
N/A
Type Of Tap
S.T.I. (Screw Thread Insert) Tap
Thread Direction
Right Hand
Thread Limit
H3
Thread Type
UN
Tap Shank Type
USCTI Shank STI Spiral CNC Tap
Type Of Hole To Tap
Through Hole
Tool Coating
Hardslick Coated
Tool Substrate Material
HSS (High Speed Steel)
Primary Application
Multi-Purpose
Hand Cutting Direction
Right Hand
Country of Origin
Korea, Republic of
Hand Helix Direction
N/A
Series
SI
Style
Plug
Flute End Type
Spiral Point
Thread Chamfer
4-5 Pitch Lead
Model
YG-1 STI TAP
Size
0.1640" 8-32 STI
Type
CNC STI Tap
Coolant Through
No Coolant Hole
Max Depth Of Thread
3.0xD
