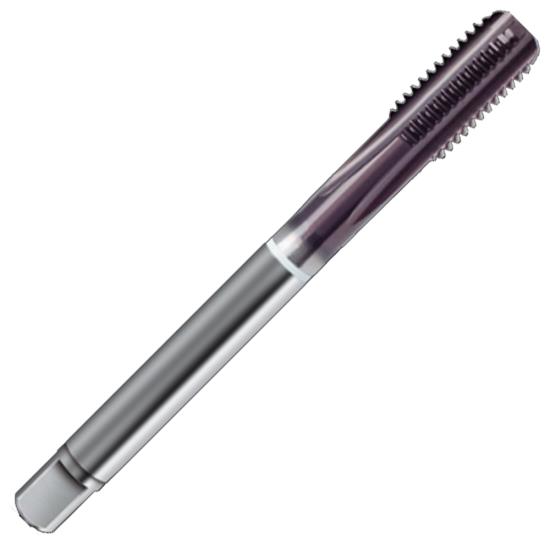

Guhring M18 x 1.5 D5/D6 Straight Flute Semi-Bottom CNC Cut Tap, 5 Flutes, HSS-E (5% Cobalt HSS), TiAlN Coated, No Coolant Hole. HP White Ring Tap For Cast Iron

GUHRING INC.

9001690180070

169 18.007

M18 x 1.5

UPC: 4031093677714

Weight: 0.35053458 LBS

Brand: GUHRING INC.

$171.80

(5% off)

$162.63

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 169 Details

Product Description

Guhring High Performance White Ring Cut Taps. Primarily Applicable For Thread Cutting Cast Iron. Series 169 For Producing Right Hand Metric Fine Threads Per Tolerance Class 6Hx. Tap Shank Made Per Din 374 Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Tialn Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And 5 Flutes. Primarily Used For Threading Blind Or Through Holes.

Guhring High Performance White Ring Thread Cutting Tap, Series 169:
Made From Premium HSS-E (5% Cobalt HSS) with TiAlN Coated Finish
Tap Shank Per DIN 374 Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class 6HX For Producing Right Hand Metric Fine Threads
Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and 5 Flutes For Tapping Blind or Through Holes
Primarily Applicable For Use In (K) Cast Iron
Guhring Series 169, Order Code 18.007, Part Number 9001690180070

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

100

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9001690180070
Thread Size: M18 x 1.5
Overall Length: 110.00mm
Shank Diameter: 14.00mm
Number Of Flutes: 5
Helix Angle: N/A
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: D5/D6
Thread Type: Metric Fine
Tap Shank Type: DIN 374
Type Of Hole To Tap: Blind or Through Hole
Tool Coating: TiAlN Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Tolerance Class: 6HX
Primary Application: Cast Iron
Flat Width: 11.00mm
Material Food Group: (K)
Inch Or Metric: Metric
Country of Origin: Germany
Series: 169
Style: Semi-Bottoming
Flute End Type: Straight Flute
Thread Chamfer: 2-3 Pitch Lead
Model: White Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: N/A

Guhring M18 x 1.5 D5/D6 Straight Flute Semi-Bottom CNC Cut Tap, 5 Flutes, HSS-E (5% Cobalt HSS), TiAlN Coated, No Coolant Hole. HP White Ring Tap For Cast Iron
