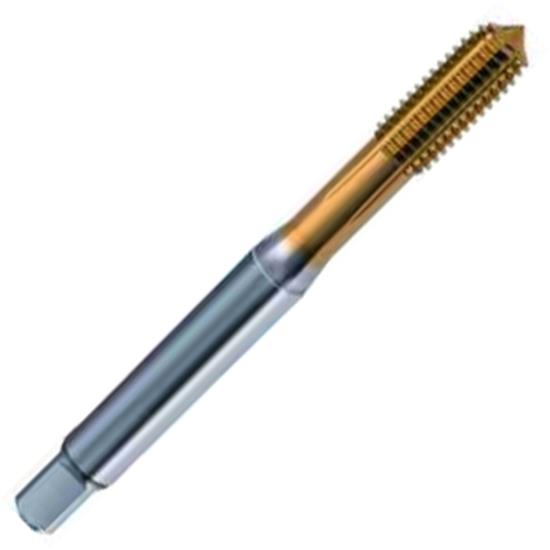

Guhring M8 x 1.25 D9/D10 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E (5% Cobalt HSS), TiN Coated, No Coolant Hole. General Purpose Form Tap For Universal Thread Forming

Guhring M8 x 1.25 D9/D10 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E (5% Cobalt HSS), TiN Coated, No Coolant Hole. General Purpose Form Tap For Universal Thread Forming
GUHRING INC.
9009190080000
9009190080000
919 8.000
M8 x 1.25 FORM
UPC: 4031093266109
Weight: 0.07936632 LBS
Brand: GUHRING INC.
$59.10
(5% off)
$55.93
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 919 Details
Product Description

Guhring General Purpose Thread Forming Taps. Primarily Applicable For Thread Forming Universally In Most Materials. Series 919 For Producing Right Hand Metric Threads Per Tolerance Class 6Hx. Tap Shank Made Per Din 371 Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Tin Coated Finish. Plain Cylindrical Shank Cnc Form Taps, No Coolant Hole And Are Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And Oil Grooves. Primarily Used For Threading Blind Or Through Holes.

  • Guhring General Purpose Thread Forming Tap, Series 919:
  • Made From Premium HSS-E (5% Cobalt HSS) with TiN Coated Finish
  • Tap Shank Per DIN 371 Standard With Plain Cylindrical Shank and No Coolant Hole
  • Thread Limit Per Tolerance Class 6HX For Producing Right Hand Metric Threads
  • Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and Oil Grooves For Tapping Blind or Through Holes
  • Primarily Applicable For Use In (P) Steels, (M) Stainless Steels, (S) Heat-Resistant Super Alloys
  • Also Suitable For Limited Use In (N) Aluminum, Al-Alloys
  • Guhring Series 919, Order Code 8.000, Part Number 9009190080000

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin Stock
20
Add to Cart

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9009190080000
Thread Size
M8 x 1.25 FORM
Overall Length
90.00mm
Shank Diameter
8.00mm
Number Of Flutes
5
Helix Angle
N/A
Type Of Tap
CNC Form Tap
Thread Direction
Right Hand
Thread Limit
D9/D10
Thread Type
Metric
Tap Shank Type
DIN 371
Type Of Hole To Tap
Blind or Through Hole
Tool Coating
TiN Coated
Tool Substrate Material
HSS-E (5% Cobalt HSS)
Tolerance Class
6HX
Primary Application
Universal Materials
Flat Width
6.20mm
Material Food Group
(P), (M), (S), Also (N)
Inch Or Metric
Metric
Country of Origin
Germany
Series
919
Style
Semi-Bottoming
Flute End Type
Straight Flute
Thread Chamfer
2-3 Pitch Lead
Model
General Purpose Form Tap
Shank Type
Plain Shank
Coolant Through
No Coolant Hole
Max Depth Of Thread
35.00mm
