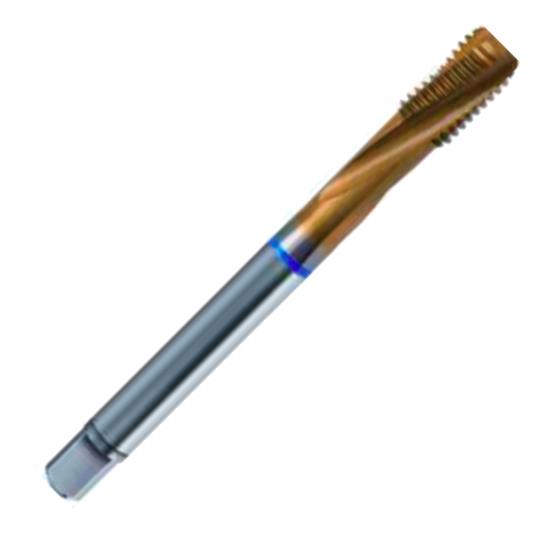

Guhring M16 x 1.5 D4/D5 Spiral Flute Semi-Bottom CNC Cut Tap, 4 Flutes, HSS-E (5% Cobalt HSS), TiN Coated, No Coolant Hole. HP Blue Ring Tap For Stainless Steels

GUHRING INC.

9028970160070

2897 16.007

M16 x 1.5

UPC: 4031093603249

Weight: 0.17416498 LBS

Brand: GUHRING INC.

$117.43

(6% off)

$110.49

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Series 2897 Details

Product Description

Guhring High Performance Blue Ring Cut Taps. Primarily Applicable For Thread Cutting Stainless Steel. Series 2897 For Producing Right Hand Metric Fine Threads Per Tolerance Class 6H. Tap Shank Made Per Din 374 Standard. Produced From Premium Hss-E (5% Cobalt Hss) Substrate, Tin Coated Finish. Plain Cylindrical Shank Cnc Cut Taps, No Coolant Hole, Spiral Flute Semi-Bottoming Style, 15° Helix Angle, 2-3 Pitch Lead Threads And 4 Flutes. Primarily Used For Threading Blind Holes.

Guhring High Performance Blue Ring Thread Cutting Tap, Series 2897:
Made From Premium HSS-E (5% Cobalt HSS) with TiN Coated Finish
Tap Shank Per DIN 374 Standard With Plain Cylindrical Shank and No Coolant Hole
Thread Limit Per Tolerance Class 6H For Producing Right Hand Metric Fine Threads
Spiral Flute Semi-Bottoming Style With 15° Helix Angle, 2-3 Pitch Lead Threads and 4 Flutes For Tapping Blind Holes
Primarily Applicable For Use In (M) Stainless Steels
Also Suitable For Limited Use In (P) Steels
Guhring Series 2897, Order Code 16.007, Part Number 9028970160070

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany

GUHRING INC. Brand Home

Shipping & Delivery Options

BROOKFIELD, WISCONSIN, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$100.00	UPS Blue 2 Business Days	$19.99	4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$40.00 MINIMUM ORDER

If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day

Wisconsin Stock

Additional Product Details

Technical Details

Manufacturer: GUHRING INC.
Manufacturer Part Number: 9028970160070
Thread Size: M16 x 1.5
Overall Length: 100.00mm
Shank Diameter: 12.00mm
Number Of Flutes: 4
Helix Angle: 15°
Type Of Tap: CNC Cut Tap
Thread Direction: Right Hand
Thread Limit: D4/D5
Thread Type: Metric Fine
Tap Shank Type: DIN 374
Type Of Hole To Tap: Blind Hole
Tool Coating: TiN Coated
Tool Substrate Material: HSS-E (5% Cobalt HSS)
Tolerance Class: 6H
Primary Application: Stainless Steel
Flat Width: 9.00mm
Material Food Group: (M), Also (P)
Inch Or Metric: Metric
Country of Origin: Germany
Series: 2897
Style: Semi-Bottoming
Flute End Type: Spiral Flute
Thread Chamfer: 2-3 Pitch Lead
Model: Blue Ring Tap
Shank Type: Plain Shank
Coolant Through: No Coolant Hole
Max Depth Of Thread: N/A
