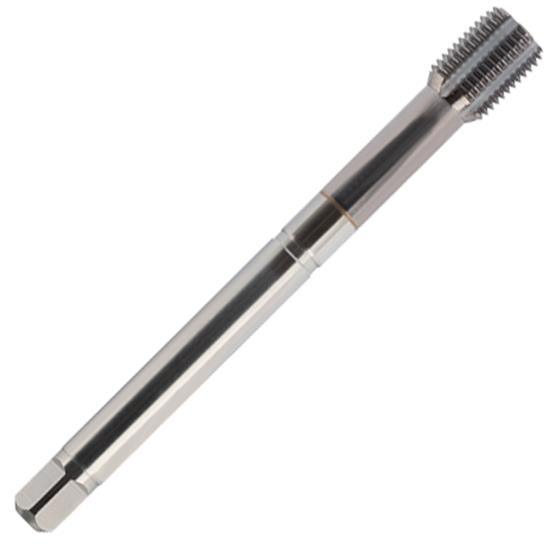

Guhring M6 x .75 D6/D7 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials

Guhring M6 x .75 D6/D7 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials Guhring M6 x .75 D6/D7 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials Guhring M6 x .75 D6/D7 Straight Flute Semi-Bottom CNC Form Tap w/Oil Grooves, HSS-E-PM (PM Cobalt), TiCN Coated, No Coolant Hole. HP Pionex Tap For Universal Use In All Materials
GUHRING INC.
9044890060040
9044890060040
4489 6.004
M6 x .75 FORM
UPC: 4049844488571
Weight: 0.02866006 LBS
Brand: GUHRING INC.
$131.46
(6% off)
$123.68
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page Series 4489 Details
Product Description

Guhring High Performance Pionex Thread Forming Taps. Primarily Applicable For Thread Forming Universally In Most Materials. Series 4489 For Producing Right Hand Metric Fine Threads Per Tolerance Class 6Hx. Tap Shank Made Per Din 374 Standard. Produced From Premium Hss-E-Pm (Cobalt Powdered Metallurgy) Substrate, Ticn Coated Finish. Plain Cylindrical Shank Cnc Form Taps, No Coolant Hole, Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads And Oil Grooves. Primarily Used For Threading Blind Or Through Holes.

  • Guhring High Performance Pionex Thread Forming Tap, Series 4489:
  • Made From Premium HSS-E-PM (Cobalt Powdered Metallurgy) with TiCN Coated Finish
  • Tap Shank Per DIN 374 Standard With Plain Cylindrical Shank and No Coolant Hole
  • Thread Limit Per Tolerance Class 6HX For Producing Right Hand Metric Fine Threads
  • Straight Flute Semi-Bottoming Style With 2-3 Pitch Lead Threads and Oil Grooves For Tapping Blind or Through Holes
  • Primarily Applicable For Use In (P) Steels, (M) Stainless Steels, (K) Cast Iron, (S) Heat-Resistant Super Alloys
  • Also Suitable For Limited Use In (N) Aluminum, Al-Alloys
  • Guhring Series 4489, Order Code 6.004, Part Number 9044890060040

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9044890060040
Thread Size
M6 x .75 FORM
Overall Length
80.00mm
Shank Diameter
4.50mm
Number Of Flutes
5
Helix Angle
N/A
Type Of Tap
CNC Form Tap
Thread Direction
Right Hand
Thread Limit
D6/D7
Thread Type
Metric Fine
Tap Shank Type
DIN 374
Type Of Hole To Tap
Blind or Through Hole
Tool Coating
TiCN Coated
Tool Substrate Material
HSS-E-PM (PM Cobalt)
Tolerance Class
6HX
Primary Application
Universal Materials
Flat Width
3.40mm
Material Food Group
(P), (M), (K), (S), Also (N)
Inch Or Metric
Metric
Country of Origin
Germany
Series
4489
Style
Semi-Bottoming
Flute End Type
Straight Flute
Thread Chamfer
2-3 Pitch Lead
Model
Pionex Tap
Shank Type
Plain Shank
Coolant Through
No Coolant Hole
Max Depth Of Thread
N/A
