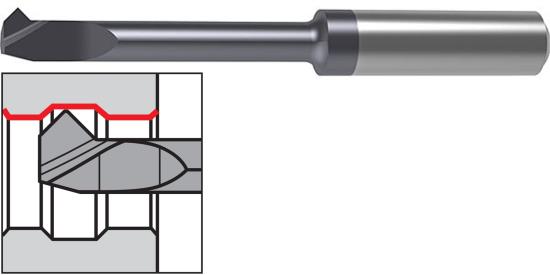

Guhring 5mm Minimum Bore System 106 Left Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 22mm Max Bore Depth, .80mm (T-Max) Projection, .30mm Tip Radius, nano-A Coated Finish

Guhring 5mm Minimum Bore System 106 Left Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 22mm Max Bore Depth, .80mm (T-Max) Projection, .30mm Tip Radius, nano-A Coated Finish Guhring 5mm Minimum Bore System 106 Left Hand ID Boring and Front/Back Chamfering 45° Stick Insert, 22mm Max Bore Depth, .80mm (T-Max) Projection, .30mm Tip Radius, nano-A Coated Finish
GUHRING INC.
9258670063300
9258670063300
25867 6.330
GT106.4547.030.22.50.L, nano-A
UPC: 4049844264847
Weight: 0.03527392 LBS
Brand: GUHRING INC.
$59.95
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Series 25867 Details
Product Description

5Mm Minimum Bore System 106 Left Hand Id Boring And Front/Back Chamfering 45° Stick Insert, 22Mm Max Bore Depth, .80Mm (T-Max) Projection, .30Mm Tip Radius, Nano-A Coated Finish. Guhring Made In Germany. Tool Number Gt106.4547.030.22.50.L, Nano-A, System 106 Id Boring And Front/Back Chamfering 45° Left Hand Stick Insert, Series 25867, Order Code 6.330, Part Number 9258670063300

  • Guhring Micro-Precision ID Turning System 106 Series 25867
  • Solid Carbide Left Hand Stick Insert With nano-A Coated Finish For ID Boring and Front/Back Chamfering 45°
  • Tool Number GT106.4547.030.22.50.L, nano-A, Series 25867, Order Code 6.330, Part Number 9258670063300

This item is part of our complete offering of Guhring Cutting Tools, trusted worldwide for premium engineering, advanced coating technology, and high-performance CNC machining solutions. Explore Guhring Hole Making & Drilling Tools for precision drilling and finishing, Guhring Milling Tools & Carbide End Mills for high-efficiency material removal, Guhring Taps & Threading Tools for accurate thread production, and Guhring Reamers for tight tolerance hole finishing. You can also browse Guhring Grooving Systems and Guhring Tool Holding & Clamping Systems to build complete machining setups with maximum rigidity and consistency. Visit our main Guhring Cutting Tools page to compare sizes, coatings, geometries, and performance options to find the right tool for your application.

Made in Germany
Shipping & Delivery Options
BROOKFIELD, WISCONSIN, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$100.00 UPS Blue 2 Business Days $19.99 4 LBS
$40.00 MINIMUM ORDER
If Ordered by 3:30pm Eastern Standard Time Guhring will Ship Same Business Day
Wisconsin
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
GUHRING INC.
Manufacturer Part Number
9258670063300
Minimum Bore
5mm
Overall Length
47mm
Shank Diameter
6mm
Radius Size
0.30mm
Tool Coating
nano-A Coated
Primary Application
ID Boring and Front/Back Chamfering 45°
Hand
Left Hand
Country of Origin
Germany
Series
25867
Model
System 106
Type
Stick Insert
Shank Type
Quick Change Shank
Point Angle
45° Face Angle
Projection Length
0.80mm (T-Max)
Maximum Bore Depth
22.00mm
Tip Angle/dt>
45° Relief Angle
