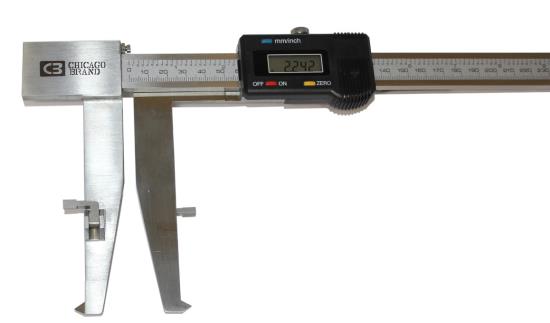

17.25" Electronic Brake Drum Slide Caliper, .0005" Resolution, .001" Accuracy, 4.25" Reach, Inch/Metric Selectable & Zero Function. 1 Year Warranty. Chicago Brand Part #50600

50600
50600
UPC: 854470002718
Weight: 3.32 LBS
Brand: CHICAGO BRAND
$239.78
(5% off)
$227.02
Available
Product Description

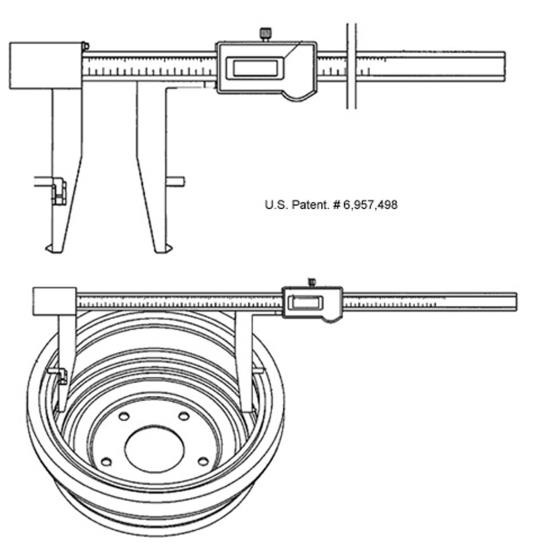

In Order To Machine The Brake Drum To Present A Round, Smooth Surface, Calipers Have Been Developed To Accurately Measure The Inside Diameter Of The Brake Drum. It Is Essential To Have A Constant Inside Diameter In The Refinished Drum To Engage The Shoe Surface Evenly. To Achieve A Correct Measurement The Points Of The Beams Of The Caliper Must Be Exactly At The Same Depth Within The Drum. Our Patented Rim Stops Accurately Locate The Caliper At Precisely The Same Depth Below The Surface For Each Measurement. Two Measurements At Different Depths Assure A Constant Smooth Diameter For The Machined Drum. Slidable Pins, Found On Other Brake Drum Calipers, Can Become Fouled In An Environment Where Metal Shavings Abound. If A Pin Inadvertently Slides Inwardly Within The Drum, Instead Of Resting On The Periphery Of The Drum, A Skewed Angle Can Result With Imprecise Measurements.

  • Features:
  • 0-17.25" Range
  • Durable Stainless Steel
  • Reads To 0.005" With 0.001" Accuracy
  • Inch And Metric Selectable Readings
  • Zero Function
  • 4.25" Reach
  • Includes Protective Storage Case
Shipping & Delivery Options
  • UPS
  • USPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 10 LBS
$50.00 UPS Blue 2 Business Days $32.99 15 LBS
UPS Ships till 5:30 p.m. & USPS ships till 4 p.m. Eastern Standard Time for same day shipping Monday-Friday except on holidays.
Any backorders for orders placed online will be shipped with no additional freight charges.
Florida Stock
1

Additional Product Details

Technical Details

Manufacturer
CHICAGO BRAND
Manufacturer Part Number
50600
Hand
Right Hand
Inch Or Metric
Inch/Metric
Country of Origin
China
Style
Automotive Brake Caliper
Type
Electronic
Range
0 - 17.25"
Accuracy
.001"/.02mm
Graduation
.0005"/.01mm
Resolution
.0005"/.01mm
