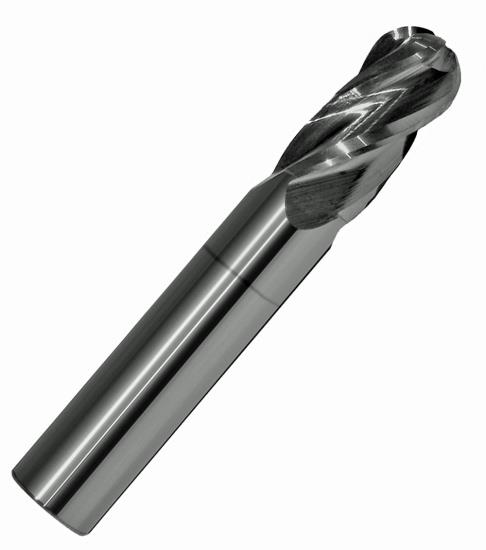

12mm 4 Flute Ball Nose Single End Carbide End Mill, TiCN Coated, Regular Length, 25mm Flute Length, 76mm OAL-Monster Tool/GWS

This vendor requires us to bring the item into our Florida warehouse for the following states: AL before shipping to you.

12mm 4 Flute Ball Nose Single End Carbide End Mill, TiCN Coated, Regular Length, 25mm Flute Length, 76mm OAL-Monster Tool/GWS 12mm 4 Flute Ball Nose Single End Carbide End Mill, TiCN Coated, Regular Length, 25mm Flute Length, 76mm OAL-Monster Tool/GWS 12mm 4 Flute Ball Nose Single End Carbide End Mill, TiCN Coated, Regular Length, 25mm Flute Length, 76mm OAL-Monster Tool/GWS 12mm 4 Flute Ball Nose Single End Carbide End Mill, TiCN Coated, Regular Length, 25mm Flute Length, 76mm OAL-Monster Tool/GWS

GWS TOOL GROUP

223001520C

223-001520C

12MM0.4724"12.00MM

UPC: 888226222570

Weight: 0.3 LBS

Brand: GWS TOOL GROUP

$116.53

(40% off)

$69.92

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page

Product Description

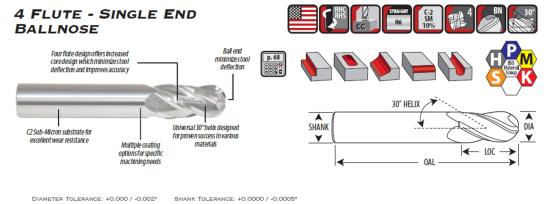

12Mm 4 Flute Ball Nose Single End Carbide End Mill, Ticn Coated, Regular Length, 25Mm Flute Length, 76Mm Oal 25Mm Loc,12Mm Shank,76Mm Oal 30° Helix, Right Hand Spiral, Right Hand Cut, 4 Flute Ball Nose Center Cutting Single End General Purpose Carbide End Mill With Plain Cylindrical Shank. C-2 Grade Sub-Micron Grain Carbide With 10% Cobalt Content. Four Flute Design Offers Increased Core Diameter Which Minimizes Tool Deflection & Improves Accuracy. For Profiling, Slotting, Production Milling & Finishing Applications In A Wide Range Of Ferrous Metals, Including Stainless Steels & High Temp Alloys. Made In The Usa. Gws/Monster Tool Part #223-001520C

Diameter Tol.: +0/-0.002".
Shank Tol.: +0/-0.0005".

This item is part of our complete offering of GWS Tool Group Cutting Tools, a USA manufacturer known for high-performance CNC machining solutions, custom-engineered tooling, and advanced coating technologies. Explore GWS End Mills and Milling Products for high-performance carbide milling, GWS Hole Making Tools for drilling and finishing applications, GWS Threading and Gaging Tools for taps, thread mills, dies, and gages, GWS Blanks, Rods and Strips Solid Carbide for carbide stock solutions, and GWS Armory Tools for specialty firearm component machining applications. GWS Tool Group brings together respected legacy brands including Monster Tool, Balax Taps, and Benchmark HP Carbide End Mills, combining their strengths into a powerful portfolio of milling, holemaking, threading, and specialty cutting tools manufactured in the USA. Visit our full GWS Tool Group Cutting Tools page to explore the complete product range, compare tool geometries, coatings, and performance options, and find the right solution for your application.

Made in U.S.A.

GWS TOOL GROUP Brand Home

Shipping & Delivery Options

Vista, CA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$50.00	UPS Blue 2 Business Days	$14.99	8 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$29.99	8 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$98.00 MINIMUM ORDER

If ordered by 1:30pm Eastern Standard Time GWS will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: GWS TOOL GROUP
Manufacturer Part Number: 223-001520C
Tool Diameter: 0.4724" 12mm
Length Of Cut: 0.984" 25mm
Overall Length: 2.992" 76mm
Shank Diameter: 0.4724" 12mm
Radius Size: Ball
Number Of Flutes: 4
Helix Angle: 30°
End Style: Ball
Tool Coating: TiCN
Primary Application: General Purpose
Max Reach: 0.000"
Country of Origin: U.S.A.
Series: 223
Single Or Double End: Single End
Model: Gp-Carbide End Mills
