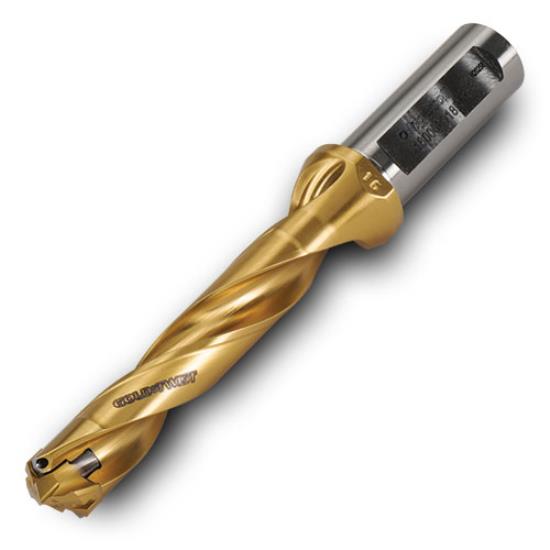

TD2100168C8R01 GoldTwist Body
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
3212786
3212786
TD2100168C8R01
TD2100168C8R01
Weight: 1.257 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Td2100168c8r01 Goldtwist Body Iso Item #Td2100168c8r01 Ingersoll Part #3212786 Dcon - Shank Diameter : 1.0000. Lu - Usable Length: 6.61. Lf - Functional Length: 7.440. Ls - Shank Length: 2.20. Ssc - Insert Seat Size: 21. Dcx - Cutting Diameter Max.: 0.8622 (21.9 Mm). Dcn - Cutting Diameter Min.: 0.8268 (21.0 Mm). Df - Flange Diameter : 1.26. Uldr - Usable Length Diameter Ratio: 8Ã?. Dcon - Shank Dia.: 1.0000. Lu - Usable Length: 6.61. Lf - Functional Length: 7.440. Ls - Shank Length: 2.20. Ssc - Insert Seat Size: 21. Df - Flange Dia.: 1.26. Dcx - Cutting Dia. Max.: 0.8622 (21.9 Mm). Dcn - Cutting Dia. Min.: 0.8268 (21.0 Mm). Uldr - Usable Length Dia. Ratio: 8Ã?.
- 0 .2756-1.0197"
- Universal Shank
- Coolant Through
- Holds +.002/-.000 on Hole Diameter
- 0 .2756-1.0197"
- Universal Shank
- Coolant Through
- Holds +.002/-.000 on Hole Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- Cast Iron Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- Stainless Steel & Exotics Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0000" (6.0-25.4 mm)
- Non-Ferrous Applications
- Grade IN05S
- Holds +.002/-.000 on Diameter
- 0.1574"-1.0197" (4.0-25.9 mm)
- Steel & General Purpose Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- 2-Flute Self-Centering Geometry
- Steel & Cast Iron Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.3125-1.0118" (8.0-25.7 mm)
- Steel & General Purpose Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
