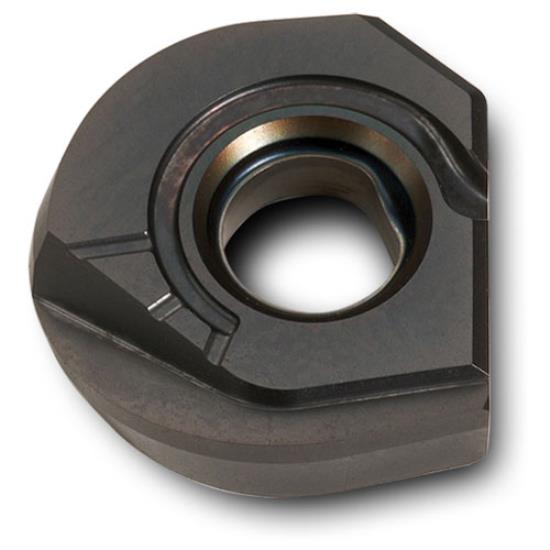

NQHG190500R-FM IN2530 FinishBall+ Milling Insert: FM Chipbreaker, 0.375" Radius, 1 Edge - Ingersoll Part # 6108649

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
NQHG190500R-FM IN2530 FinishBall+ Milling Insert: FM Chipbreaker, 0.375" Radius, 1 Edge - Ingersoll Part # 6108649 NQHG190500R-FM IN2530 FinishBall+ Milling Insert: FM Chipbreaker, 0.375" Radius, 1 Edge - Ingersoll Part # 6108649
INGERSOLL CUTTING TOOLS
6108649
6108649
NQHG190500R-FM IN2530
NQHG190500R-FM IN2530
Weight: 0.034 LBS
Brand: INGERSOLL CUTTING TOOLS
$70.70
(14% off)
$61.06
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Nqhg190500r-Fm In2530 Is A Finishball+ Milling Insert Developed For 3D Profile Milling. Finishball+ Is A Ball-Nose Milling System For Three-Dimensional Contour Finishing. This Item Provides 0.37" Maximum Cutting Depth, 0.375" Corner Radius, 0.205" Thickness, 1 Usable Edge, Right Hand Orientation. The Cutting Element Uses Grade In2530, Carbide, Tialn And Tin Finish. Recommended Workpiece Materials: Steel. The Fm Chipbreaker Is Intended For Semi-Finishing Through Medium Machining Of Steel. Match This Cutting Element To The Correct Finishball+ Holder Or Cutter, Then Select The Grade, Chip Geometry And Edge Preparation For The Workpiece And Operation. Ingersoll Part # 6108649.

  • Model: FinishBall+
  • Series: NQHG190500R
  • Type: Milling Insert
  • Application: 3D Profile Milling
  • System Benefit: Ball-nose system for 3D contour milling
  • Compatible System: FinishBall+ compatible milling cutters
  • Maximum Cutting Depth: 0.37"
  • Corner Radius: 0.375"
  • Thickness: 0.205"
  • Cutting Edges: 1
  • Hand: Right Hand
  • Grade: IN2530
  • Substrate: Carbide
  • Finish: TiAlN and TiN
  • Chipbreaker: FM
  • Workpiece Materials: Steel
  • ISO Material Groups: ISO P
  • Chipbreaker Use: semi-finishing through medium machining of steel
  • Ingersoll Part #: 6108649
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
45
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6108649
ISO Part Number
NQHG190500R-FM IN2530
ANSI Part Number
NQHG190500R-FM IN2530
Thickness
0.205"
Material
Steel
Tool Coating
TiAlN and TiN
Tool Substrate Material
Carbide
Primary Application
3D Profile Milling
Applicable Tool
FinishBall+ compatible milling cutters
Hand
Right Hand
Material Food Group
ISO P
Grade
IN2530
Series
NQHG190500R
Style
FinishBall+ Insert
Brand
Ingersoll
Model
FinishBall+
Type
Milling Insert
Chip Breaker
FM
Depth Of Cut
0.37"
Number Of Points
1
