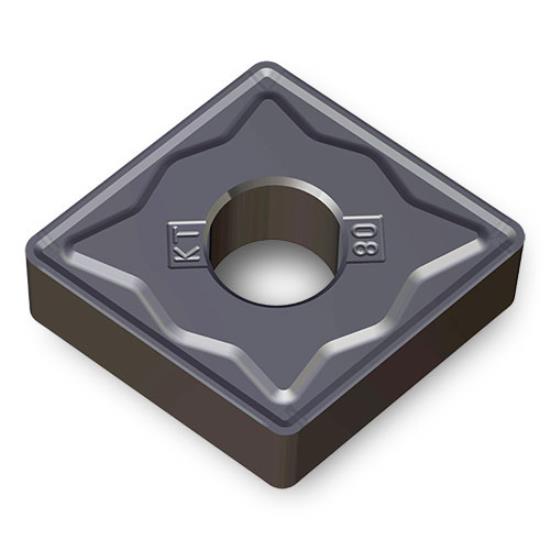

CNMG544KT / CNMG160616KT Grade TT7015 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with KT Chipbreaker for Rough Turning Cast Iron

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNMG544KT / CNMG160616KT Grade TT7015 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with KT Chipbreaker for Rough Turning Cast Iron CNMG544KT / CNMG160616KT Grade TT7015 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3 Coated with KT Chipbreaker for Rough Turning Cast Iron
INGERSOLL CUTTING TOOLS
6125454
6125454
CNMG160616KT TT7015
CNMG544KT TT7015
Weight: 0.055 LBS
Brand: INGERSOLL CUTTING TOOLS
$34.85
(47% off)
$18.47
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnmg544kt / Cnmg160616kt Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Cnmg Insert Is Manufactured In Grade Tt7015 Carbide Using Tin+Ticn+Al2o3 Coated Finish And The Kt Chipbreaker For Rough Turning. It Provides 4 Indexable Cutting Corners In An 80° Rhombic Geometry. Key Dimensions Include 0.063" Corner Radius, 0.625" Inscribed Circle, 0.250" Thickness. Recommended Workpiece Materials Include Cast Iron. Tt7015/Tt7310 Is A Cvd Carbide Cast Iron Grade For General Gray And Ductile Iron Machining, Including Continuous And Interrupted Cuts. Iso Range K10-K25. Kt Is A Rough-Turning Chipbreaker For Cast Iron Applications. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6125454

  • CNMG544KT / CNMG160616KT CNMG negative turning insert with hole
  • 4 indexable cutting corners; 80° rhombic geometry; 0.063" corner radius, 0.625" IC, 0.250" thick
  • Grade TT7015 carbide with TiN+TiCN+Al2O3 coated finish
  • KT chipbreaker for Rough Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO K10-K25; cast iron
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
60
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6125454
ISO Part Number
CNMG160616KT
ANSI Part Number
CNMG544KT
Radius Size
0.063"
Thickness
0.250"
Material
Cast Iron
Tool Coating
TiN+TiCN+Al2O3
Tool Substrate Material
Carbide
Primary Application
Rough Turning
Hand
Neutral
Included Angle
80°
Material Food Group
K10-K25
Grade
TT7015
Series
CNMG
Style
With Hole
Model
ISO Turn Holder
Size
544
Type
Negative Turning Insert
Inscribed Circle
0.625"
Chip Breaker
KT
Number Of Points
4
