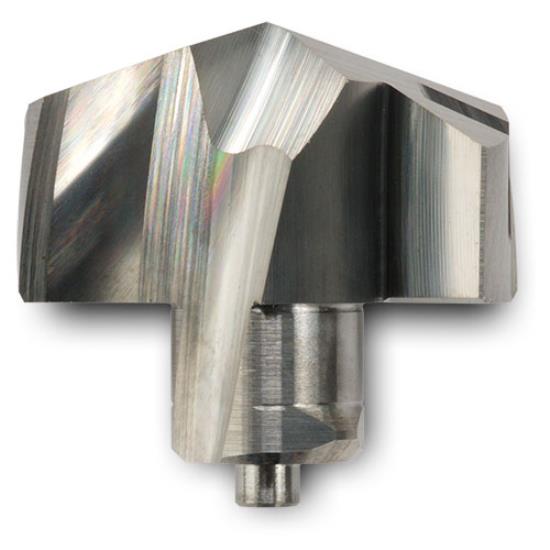

0.748" Diameter TNA1900R01 IN05S GoldTwist Replaceable Drill Tip: 140° Point - Ingersoll Part # 6170234

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
0.748" Diameter TNA1900R01 IN05S GoldTwist Replaceable Drill Tip: 140° Point - Ingersoll Part # 6170234 0.748" Diameter TNA1900R01 IN05S GoldTwist Replaceable Drill Tip: 140° Point - Ingersoll Part # 6170234
INGERSOLL CUTTING TOOLS
6170234
6170234
TNA1900R01 IN05S
TNA1900R01 IN05S
Weight: 0.064 LBS
Brand: INGERSOLL CUTTING TOOLS
$164.00
(14% off)
$141.65
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tna1900r01 In05s Is A Goldtwist Replaceable Drill Tip Developed For Holemaking. Goldtwist Is Ingersoll's Replaceable-Tip Drilling System For Productive Holemaking With Internal Coolant And Economical Tip Changes Instead Of Replacing The Complete Drill Body. This Item Provides 0.748" (19Mm) Cutting Diameter, 0.748" (19Mm) Tool Diameter, 0.32" Functional Length, 140° Point Angle. The Cutting Element Uses Grade In05s, Carbide, Uncoated Finish. Recommended Workpiece Materials: Non-Ferrous Materials. Match This Cutting Element To The Correct Goldtwist Holder Or Cutter, Then Select The Grade, Chip Geometry And Edge Preparation For The Workpiece And Operation. Ingersoll Part # 6170234.

  • Model: GoldTwist
  • Series: TNA1900R
  • Type: Replaceable Drill Tip
  • Application: Holemaking
  • System Benefit: Replaceable-tip drilling system for productive, economical holemaking
  • Compatible System: GoldTwist drill or reamer bodies
  • Cutting Diameter: 0.748" (19mm)
  • Tip Length: 0.113"
  • Functional Length: 0.32"
  • Point Angle: 140°
  • Grade: IN05S
  • Substrate: Carbide
  • Finish: Uncoated
  • Workpiece Materials: Non-Ferrous Materials
  • ISO Material Groups: ISO N
  • Ingersoll Part #: 6170234
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6170234
Tool Diameter
0.7480" (19.00mm)
Tool Diameter Decimal
0.7480"
Tool Diameter Metric
19.00mm
Cutter Diameter
0.7480" (19.00mm)
ISO Part Number
TNA1900R01 IN05S
ANSI Part Number
TNA1900R01 IN05S
Material
Non-Ferrous Materials
Tool Coating
Uncoated
Tool Substrate Material
Carbide
Primary Application
Holemaking
Applicable Tool
GoldTwist drill or reamer bodies
Material Food Group
ISO N
Inch Or Metric
Inch
Grade
IN05S
Series
TNA1900R
Style
GoldTwist Tip
Brand
Ingersoll
Model
GoldTwist
Type
Replaceable Drill Tip
Overall Reach
0.320"
Point Angle
140°
Length Of Tip
0.113"
