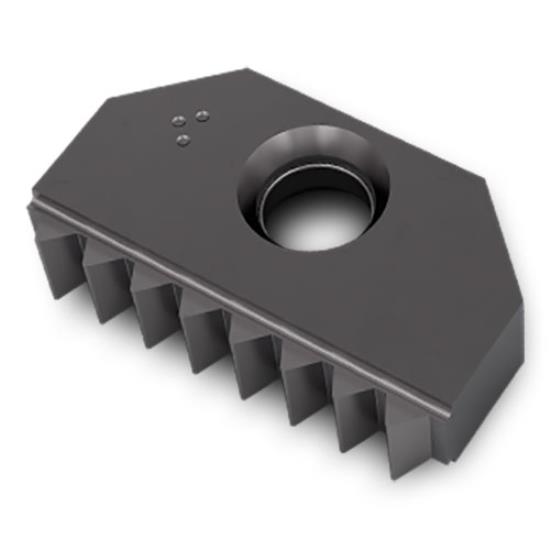

LYEU40115NT-1/LYEU40115NT-1 IN2005 RapidThread Insert

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
LYEU40115NT-1/LYEU40115NT-1 IN2005 RapidThread Insert LYEU40115NT-1/LYEU40115NT-1 IN2005 RapidThread Insert
INGERSOLL CUTTING TOOLS
6198594
6198594
LYEU40115NT-1 IN2005
LYEU40115NT-1 IN2005
Weight: 0.149 LBS
Brand: INGERSOLL CUTTING TOOLS
$226.00
(9% off)
$206.18
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

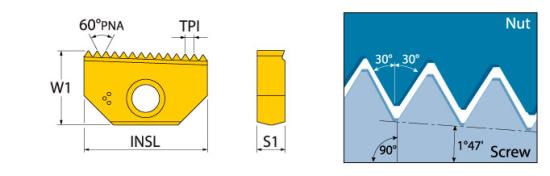

Lyeu40115nt-1/Lyeu40115nt-1 In2005 Rapidthread Insert Pna - Profile Included Angle: 60. Thft - Thread Form Type: Npt60 - National Pipe Thread 60°. Ttp - Thread Type: External & Internal. Tpt - Thread Profile Type: Full. Noi - Number Of Indexes: 1. Insl - Insert Length: 1.575 (40 Mm). W1 - Insert Width: 0.819. Tpi - Threads Per Inch: 11.5. S1 - Insert Thickness Overall: 0.252.

  • NPT thread form
  • Full profile
  • ANSI/ASME B1.20.1-1983
  • Single Flute
  • Weldon Shank
  • 12-40 mm Inserts
  • Coolant Thru
  • Two Flutes
  • Weldon Shank
  • 14-40 mm Inserts
  • Coolant thru
  • 21-40 mm Insert
  • Coolant thru
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6198594
ISO Part Number
LYEU40115NT-1 IN2005
ANSI Part Number
LYEU40115NT-1 IN2005
Tool Coating
TiAlN
Grade
IN2005
