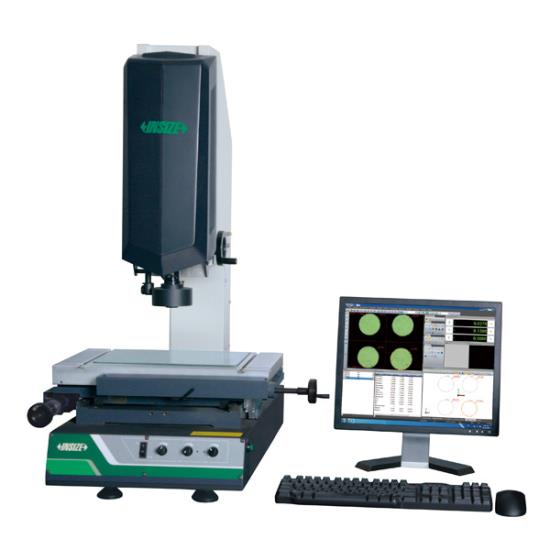

The Insize Isd-H320 High-Definition Vision Measuring System (Computer Is Included), Measuring Range 12×8×6" Is Designed For Precision Measurement, Inspection, And Quality Control Applications. Stage Size 19.69×12.99". Glass Stage Size 13.78×9.84". Resolution: Of X/Y/Z Axis .00002". Accuracy Of X/Y Axis: ? (137.8+10L) Uin, L Is The Measuring Length In Inch. Repeatability Of X/Y Axis .00008". Objective 0.58X~7.5X (Zoom). High-Defintion Image. Large View Field. Suitable For Shop Floor Inspection, Cnc Machining Support, Receiving Inspection, And General Industrial Measurement Work.

• Stage size 19.69×12.99"
• Glass stage size 13.78×9.84"
• Resolution of X/Y/Z axis .00002"
• Accuracy of X/Y axis: ?(137.8+10L)uin, L is the measuring length in inch
• Repeatability of X/Y axis .00008"
• Objective 0.58X~7.5X (zoom)
• High-defintion image
• Large view field
