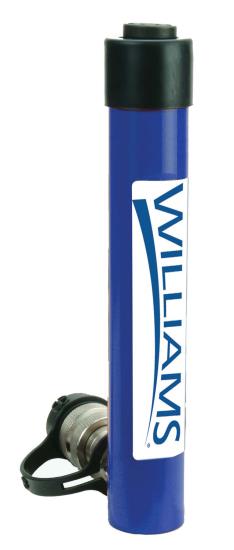

5 Ton Single Acting Hydraulic Ram/Cylinder - 7.09" Stroke, 10.71" Collapsed Height, 10,000 psi Max Working Pressure. Williams® #JHW6C05T07

This Williams Item can take 3 - 7 Business Days to ship, when it's shipped we will Email you a Tracking Number.
This vendor requires us to bring the item into our Florida warehouse for the following states: PR,AL,AK,AZ,CO,CT,DC,HI,LA,ME,MD,MA,MS,MO,NM,NY,OR,VA,ID,SC before shipping to you.
5 Ton Single Acting Hydraulic Ram/Cylinder - 7.09" Stroke, 10.71" Collapsed Height, 10,000 psi Max Working Pressure. Williams® #JHW6C05T07
WILLIAMS INDUSTRIAL
JHW6C05T07
JHW6C05T07
UPC: 662459922632
Weight: 4.8039 LBS
Brand: WILLIAMS INDUSTRIAL
$855.00
(52% off)
$410.30
each
Add To My Favorites
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

5 Ton Single Acting Hydraulic Ram/Cylinder - 7.09" Stroke, 10.71" Collapsed Height, 10,000 Psi Max Working Pressure. Williams® #Jhw6c05t07

  • SINGLE ACTING CYLINDERS
  • 39 models
  • Internal plunger threads
  • Snap in grooved saddles
  • Rod wiper seals out dirt and contamination
  • Collar fixture threads
  • Two base mounting holes on most models
  • High strength steel construction from gun drilled solid bar
  • High flow 3/8" NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi / 700 bar

This item is part of our complete offering of Williams Industrial Tools, a trusted USA brand known for high-quality hand tools, sockets, torque tools, and industrial-grade equipment designed for durability and professional use. Williams tools are built to meet the demands of automotive, industrial, and maintenance applications, delivering consistent performance and long service life. Browse our full selection of Williams Tools, including both factory stock and locally stocked inventory, or explore our Williams Super Store – Florida Stock for fast shipping and same-day pickup options to keep your operations running efficiently.

Made in Taiwan
Shipping & Delivery Options
MIDLAND, GEORGIA, USA
  • UPS
  • USPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$200.00 Standard Freight (5 - 7 days) $60.00 2000 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$100.00 MINIMUM ORDER
Ships within 3 - 5 Business Days. We will Email you a Tracking Number when you order ships.
Factory Stock
2
Add to Cart

Additional Product Details

Technical Details

Manufacturer
WILLIAMS INDUSTRIAL
Manufacturer Part Number
JHW6C05T07
Outside Diameter
1.50"
Maximum Height
17.80"
Minimum Height
10.71"
Rated Load
5 Ton
Country of Origin
Taiwan
Style
Standard All Steel
Brand
Williams
Size
7.09" Stroke
Type
Single Acting
Maximum Working Pressure
10,000 psi
Oil Inlet Port Size
3/8-18 NPTF
Cylinder Oil Capacity
7.09 cu in
Cylinder Stroke
7.09"
Internal Pressure At Capacity
10,000 psi
Cylinder Capacity
5 Ton
Cylinder Effective Area
1.00 sq in
Cylinder Bore Diameter
1.13"
Plunger Diameter
1.00"
Saddle Diameter
0.98"
