5/8" 5 Flute .030" Corner Radius Carbide End Mill, 3/4" LOC, 5/8" Plain Shank, 45° Helix, V-Carb Series 55C, Ti-NAMITE-A (AlTiN) Coated, For HP High Speed Finishing

5/8" 5 Flute .030" Corner Radius Carbide End Mill, 3/4" LOC, 5/8" Plain Shank, 45° Helix, V-Carb Series 55C, Ti-NAMITE-A (AlTiN) Coated, For HP High Speed Finishing 5/8" 5 Flute .030" Corner Radius Carbide End Mill, 3/4" LOC, 5/8" Plain Shank, 45° Helix, V-Carb Series 55C, Ti-NAMITE-A (AlTiN) Coated, For HP High Speed Finishing
KYOCERA SGS PRECISION TOOLS
SGS32598
32598
55CS06250_030TA
UPC: 691781325989
Weight: 0.5 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$339.61
(47% off)
$181.11
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs V-Carb Series 55 - V-Carb End Mills Set The Standard For Peak Finish Quality. These Five-Flute, Unequal Helix Tools Feature Unequal Indexing And An Ideal Rake And Relief Combination For Unmatched Finishing Capability. Available With A Full Selection Of Tight Tolerance Corner Radii And Ball Nose Configurations, The V-Carb Portfolio Is Well-Equipped To Handle Your Complex Finishing Requirements. The V-Carb Series 55 End Mills Are Available With The Most Abrasive Resistant And Hardest Coating, Aluminum Titanium Nitride (Altin) Or Ti-Namite-A. With Excellent Thermal And Chemical Resistance, Ti-Namite-A Allows For Dry Cutting And Improvements In Performance Of Carbide. The Ti-Namite-A Coating Has A High Hardness Giving Ultimate Protection Against Abrasive Wear And Erosion. Ideal For High Temperature Alloys, Titanium, Steels, And Stainless Steel Applications.

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials <= 45 HRc (<= 420 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
14
Add to Cart

Additional Product Details

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
32598

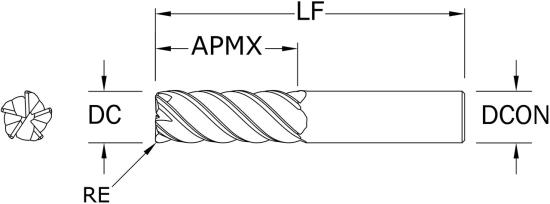

Cutter Diameter
0.6250" 5/8"
Length Of Cut
0.7500"
Overall Length
3.0000"
Shank Diameter
0.6250"
Radius Size
.030"
Number Of Flutes
5
Helix Angle
45°
End Style
Corner Radius
Tool Coating
AlTiN (Ti-NAMITE-A)
Tool Substrate Material
Carbide
Primary Application
HP High Speed Finishing
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (K), (S), Also (H)
Inch Or Metric
Inch
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
55C
Single Or Double End
Single End
Center Cutting
Yes
Flute End Type
Center Cutting
Type Of End Mill
Finisher
Model
V-Carb
Shank Type
Plain Shank
Neck Diameter
Does not apply
Chip Breaker
No
Coolant Through
No Coolant Holes
Length
Stub
Helix Type
Regular Helix
