1/8" 4 Flute .010" Corner Radius Carbide End Mill, .156" LOC, .510" Reach, 1/4" Plain Shank, 42-45° Helix, Z-Carb-MD Series ZD1C, Ti-NAMITE-X (TX) Coated, For Mold and Die Materials

1/8" 4 Flute .010" Corner Radius Carbide End Mill, .156" LOC, .510" Reach, 1/4" Plain Shank, 42-45° Helix, Z-Carb-MD Series ZD1C, Ti-NAMITE-X (TX) Coated, For Mold and Die Materials 1/8" 4 Flute .010" Corner Radius Carbide End Mill, .156" LOC, .510" Reach, 1/4" Plain Shank, 42-45° Helix, Z-Carb-MD Series ZD1C, Ti-NAMITE-X (TX) Coated, For Mold and Die Materials
KYOCERA SGS PRECISION TOOLS
SGS36780
36780
ZD1C01250_010TA
UPC: 691781367804
Weight: 0.054 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$52.82
(44% off)
$29.63
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Z-Carb-Md - The Original Z-Carb Design With A Negative Rake, Enhanced Core And Higher Helix For Strength And Shearing Of Hard Mold & Die Materials. These 4-Flute High Performance End Mills Set The Standard For Optimal Removal Rates. Achieve Optimal Material Removal Rates With The Z-Carb-Md End Mills Through Increased Feed And Depths Of Cut In Mold And Die Materials. With Unparalleled Efficiency And Performance, These Legendary Tools Have Been Upgraded With Enhanced Geometry. Unequal Flute Spacing Helps To Disrupt The Rhythmic Pattern Created By The Cutting Edge, Helping To Suppress Damaging Harmonics. The Unequal Helix Design Further Reduces Damaging Harmonics By Changing The Angle At Which Each Cutting Edge Enters And Exits The Material. These Tools Come Standard With Enhanced Corner Geometry And Tight Tolerance Corner Radius. The Z-Carb-Md Carbide End Mills Are Supplied With Ti-Namite-X Tool Coating. The Structural Design Of Ti-Namite-X Is Adapted To Meet A Diverse Range Of Applications; Everything From High And Low-Alloy Steels To Hardened Materials (Up To 65 Hrc Core Hardness). Ti-Namite-X Is Suitable For Operations Which Require High Cutting Speeds, High Temperatures At The Cutting Edge, And High Metal Removal Rates.

  • The original Z-Carb design with negative rake, heavy core, and higher helix for strength and shearing of hard mold & die materials
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials 35-60HRc (327 to 654 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
20
Add to Cart

Additional Product Details

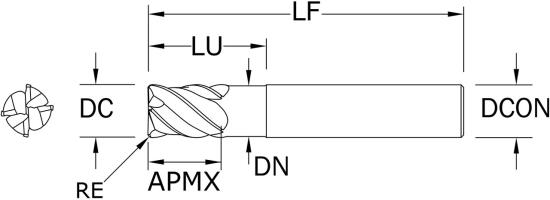

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
36780
Cutter Diameter
0.1250" 1/8"
Length Of Cut
0.1560"
Overall Length
2.5000"
Shank Diameter
0.2500"
Radius Size
.010"
Number Of Flutes
4
Helix Angle
42°-45°
End Style
Corner Radius
Tool Coating
TX (Ti-NAMITE-X)
Tool Substrate Material
Carbide
Primary Application
Mold and Die Materials
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(K), (H), Also (P)
Inch Or Metric
Inch
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
ZD1C
Single Or Double End
Single End
Center Cutting
Yes
Flute End Type
Center Cutting
Type Of End Mill
Finisher
Model
Z-Carb-MD
Shank Type
Plain Shank
Neck Diameter
0.110"
Chip Breaker
No
Coolant Through
No Coolant Holes
Length
Long Reach Neck
Helix Type
Variable Helix
