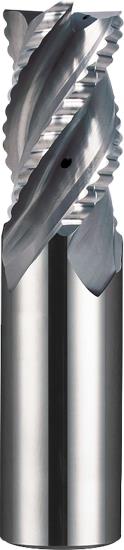

12mm 3 Flute 2mm Corner Radius Coolant-Thru Carbide Coarse Pitch Rougher, 18mm LOC, 38mm Reach, 12mm Plain Shank, 38° Helix, S-Carb Series APR, Ti-NAMITE-B (TIB2) Coated, For HP Aluminum Roughing

12mm 3 Flute 2mm Corner Radius Coolant-Thru Carbide Coarse Pitch Rougher, 18mm LOC, 38mm Reach, 12mm Plain Shank, 38° Helix, S-Carb Series APR, Ti-NAMITE-B (TIB2) Coated, For HP Aluminum Roughing 12mm 3 Flute 2mm Corner Radius Coolant-Thru Carbide Coarse Pitch Rougher, 18mm LOC, 38mm Reach, 12mm Plain Shank, 38° Helix, S-Carb Series APR, Ti-NAMITE-B (TIB2) Coated, For HP Aluminum Roughing
KYOCERA SGS PRECISION TOOLS
SGS44685
44685
APRC04724L079_14TB
UPC: 691781446851
Weight: 0.245 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$478.51
(47% off)
$255.19
each
Add To My Favorites
Technical Details & Downloads
Product Description

Sgs S-Carb Apr, Series 43Apr - Advanced Performance Rougher. 3-Flute Axial Coolant Through Long Reach Neck Chip Breaker Roughing Profile Corner Radius End Mills For Aluminum & Non-Ferrous Materials. The Original, Symmetrical Flute Design Features An Engineered Flute Form That Provides High Performance Results. These Tools Are Designed For Aggressive Aluminum, Non-Ferrous, And Non-Metallic Machining Requiring A High Level Of Material Removal. The Specialized Chip Breaker Disrupts The Chip Flow Along The Cutting Edge, Resulting In Smaller And More Controlled Chips, While Preventing Material Build-Up Between The Cutting Edge And Tool. The Engineered Flute Design Provides For Effective Chip Removal At High Feed Rates, Lower Cutting Forces Than Comparable Products, Improved Balance At High Spindle Speeds And More Effective Plunging And Profiling As Compared To Conventional Designs. These Tools Come Standard With Ti-Namite-B, Tib2 Coating (Titanium Diboride). This Ceramic Based Coating Ensures A Smooth Surface And A Low Affinity To Cold Welding Or Edge Build-Up, Which Makes It Optimal For Aluminum And Copper Applications. It Has High Toughness And High Hardness.

  • Open Flute Design
  • Specially Engineered Flute Space
  • Symmetrical End Gashing
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
11
Add to Cart

Additional Product Details

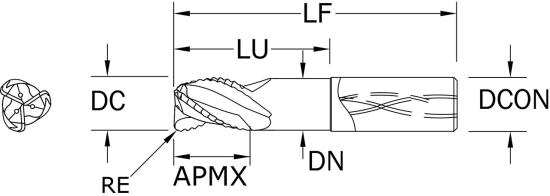

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
44685
Cutter Diameter
0.4724" 12.00mm
Length Of Cut
0.7087" 18.00mm
Overall Length
3.2677" 83.00mm
Shank Diameter
0.4724" 12.00mm
Radius Size
.0787" 2.00mm
Number Of Flutes
3
Helix Angle
38°
End Style
Corner Radius
Tool Coating
TIB2 (Ti-NAMITE-B)
Tool Substrate Material
Carbide
Primary Application
HP Aluminum Roughing
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(N)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
APR
Single Or Double End
Single End
Center Cutting
Yes
Flute End Type
Center Cutting
Type Of End Mill
Coarse Pitch Rougher
Model
S-Carb APR
Shank Type
Plain Shank
Neck Diameter
0.448" 11.38mm
Chip Breaker
Yes
Coolant Through
Internal Coolant Hole
Length
Long Reach Neck
Helix Type
Regular Helix
