12mm 4 Flute 2mm Corner Radius Carbide End Mill, 26mm LOC, 12mm Weldon Flat Shank, 38-41° Helix, Z-Carb-HTA Series ZH1M, Ti-NAMITE-A (AlTiN) Coated, For High Temp Alloys

12mm 4 Flute 2mm Corner Radius Carbide End Mill, 26mm LOC, 12mm Weldon Flat Shank, 38-41° Helix, Z-Carb-HTA Series ZH1M, Ti-NAMITE-A (AlTiN) Coated, For High Temp Alloys 12mm 4 Flute 2mm Corner Radius Carbide End Mill, 26mm LOC, 12mm Weldon Flat Shank, 38-41° Helix, Z-Carb-HTA Series ZH1M, Ti-NAMITE-A (AlTiN) Coated, For High Temp Alloys
KYOCERA SGS PRECISION TOOLS
SGS46474
46474
ZHA1C04724_080TAW
UPC: 691781464749
Weight: 0.27 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$188.33
(44% off)
$105.65
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Z-Carb-Hta - The Original Z-Carb Design With An Enhanced Core And Higher Helix Suited For The Demands Of High Temperature Alloys. These 4-Flute High Performance End Mills Set The Standard For Optimal Removal Rates. Achieve Optimal Material Removal Rates With The Z-Carb-Hta End Mills Through Increased Feed And Depths Of Cut In Difficult To Machine Materials. With Unparalleled Efficiency And Performance, These Legendary Tools Have Been Upgraded With Enhanced Geometry. Unequal Flute Spacing Helps To Disrupt The Rhythmic Pattern Created By The Cutting Edge, Helping To Suppress Damaging Harmonics. The Unequal Helix Design Further Reduces Damaging Harmonics By Changing The Angle At Which Each Cutting Edge Enters And Exits The Material. These Tools Come Standard With Enhanced Corner Geometry And Tight Tolerance Corner Radius. The Z-Carb-Hta Carbide End Mills Are Available With The Most Abrasive Resistant And Hardest Coating, Aluminum Titanium Nitride (Altin) Or Ti-Namite-A. With Excellent Thermal And Chemical Resistance, Ti-Namite-A Allows For Dry Cutting And Improvements In Performance Of Carbide. The Ti-Namite-A Coating Has A High Hardness Giving Ultimate Protection Against Abrasive Wear And Erosion. Ideal For High Temperature Alloys, Titanium, Steels, And Stainless Steel Applications.

  • The original Z-Carb design with an enhanced core and higher helix suited for the demands of high temperature alloys
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths of cut for difficult to machine materials
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials <= 45 HRc (<= 420 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

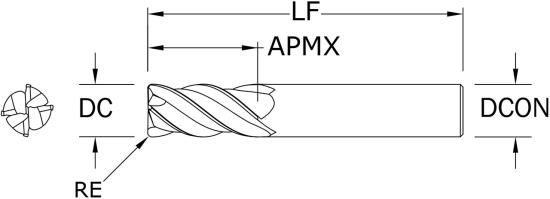

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
46474
Cutter Diameter
0.4724" 12.00mm
Length Of Cut
1.0236" 26.00mm
Overall Length
3.2677" 83.00mm
Shank Diameter
0.4724" 12.00mm
Radius Size
.0787" 2.00mm
Number Of Flutes
4
Helix Angle
38°-41°
End Style
Corner Radius
Tool Coating
AlTiN (Ti-NAMITE-A)
Tool Substrate Material
Carbide
Primary Application
High Temp Alloys
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (K), (S), Also (H)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
ZH1M
Single Or Double End
Single End
Center Cutting
Yes
Flute End Type
Center Cutting
Type Of End Mill
Finisher
Model
Z-Carb-HTA
Shank Type
Weldon Flat Shank
Neck Diameter
Does not apply
Chip Breaker
No
Coolant Through
No Coolant Holes
Length
Regular
Helix Type
Variable Helix
