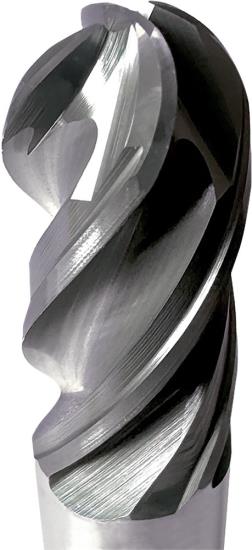

25mm 4 Flute Ball Nose Carbide End Mill With JetStream Coolant Slots 38mm LOC, 25mm Plain Shank, 35-38° Helix, Z-Carb-AP Series ZPMB, Ti-NAMITE-X (TX) Coated, For Optimal Material Removal

25mm 4 Flute Ball Nose Carbide End Mill With JetStream Coolant Slots 38mm LOC, 25mm Plain Shank, 35-38° Helix, Z-Carb-AP Series ZPMB, Ti-NAMITE-X (TX) Coated, For Optimal Material Removal 25mm 4 Flute Ball Nose Carbide End Mill With JetStream Coolant Slots 38mm LOC, 25mm Plain Shank, 35-38° Helix, Z-Carb-AP Series ZPMB, Ti-NAMITE-X (TX) Coated, For Optimal Material Removal 25mm 4 Flute Ball Nose Carbide End Mill With JetStream Coolant Slots 38mm LOC, 25mm Plain Shank, 35-38° Helix, Z-Carb-AP Series ZPMB, Ti-NAMITE-X (TX) Coated, For Optimal Material Removal
KYOCERA SGS PRECISION TOOLS
SGS46522
46522
Z1B09843TACC
UPC: 691781465227
Weight: 1.358 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$1,011.63
(47% off)
$539.50
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Z-Carb - These 4-Flute High Performance End Mills Set The Standard For Optimal Removal Rates. Achieve Optimal Material Removal Rates With The Z-Carb End Mills Through Increased Feed And Depths Of Cut. With Unparalleled Efficiency And Performance, These Legendary Tools Have Been Upgraded With Enhanced Geometry. Unequal Flute Spacing Helps To Disrupt The Rhythmic Pattern Created By The Cutting Edge, Helping To Suppress Damaging Harmonics. The Unequal Helix Design Further Reduces Damaging Harmonics By Changing The Angle At Which Each Cutting Edge Enters And Exits The Material. The Ball End Design Is Ideal For Finishing Operations In Complex Workpieces. With The Advanced Ti-Namite-X Tool Coating, These Tools Are Ideal For Dry Machining. The Structural Design Of Ti-Namite-X Is Adapted To Meet A Diverse Range Of Applications; Everything From High And Low-Alloy Steels To Hardened Materials (Up To 65 Hrc Core Hardness). Ti-Namite-X Is Suitable For Operations Which Require High Cutting Speeds, High Temperatures At The Cutting Edge, And High Metal Removal Rates.

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths of cut
  • Ball end design ideal for finishing operations in complex workpieces
  • Recommended for materials <= 45 HRc (<= 420 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
46522

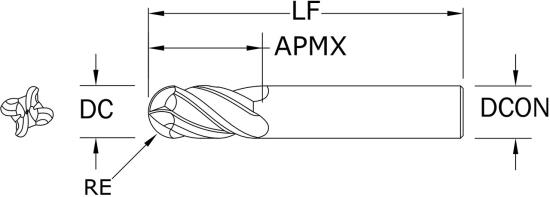

Cutter Diameter
0.9843" 25.00mm
Length Of Cut
1.4961" 38.00mm
Overall Length
4.0945" 104.00mm
Shank Diameter
0.9843" 25.00mm
Radius Size
Ball
Number Of Flutes
4
Helix Angle
35°-38°
End Style
Ball Nose
Tool Coating
TX (Ti-NAMITE-X)
Tool Substrate Material
Carbide
Primary Application
Optimal Material Removal
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (K), (S), Also (H)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
Z1MB
Single Or Double End
Single End
Center Cutting
Yes
Flute End Type
Center Cutting
Type Of End Mill
Finisher
Model
Z-Carb
Shank Type
Plain Shank
Neck Diameter
Does not apply
Chip Breaker
No
Coolant Through
JetStream Coolant Slots
Length
Stub
Helix Type
Variable Helix
