12mm 5 Flute 2.5mm Corner Radius Carbide End Mill, 26mm LOC, 48mm Reach, 12mm Plain Shank, 37° Helix, Z-Carb-HPR Series Z5C, Ti-NAMITE-A (AlTiN) Coated, For High Performance Roughing

12mm 5 Flute 2.5mm Corner Radius Carbide End Mill, 26mm LOC, 48mm Reach, 12mm Plain Shank, 37° Helix, Z-Carb-HPR Series Z5C, Ti-NAMITE-A (AlTiN) Coated, For High Performance Roughing 12mm 5 Flute 2.5mm Corner Radius Carbide End Mill, 26mm LOC, 48mm Reach, 12mm Plain Shank, 37° Helix, Z-Carb-HPR Series Z5C, Ti-NAMITE-A (AlTiN) Coated, For High Performance Roughing 12mm 5 Flute 2.5mm Corner Radius Carbide End Mill, 26mm LOC, 48mm Reach, 12mm Plain Shank, 37° Helix, Z-Carb-HPR Series Z5C, Ti-NAMITE-A (AlTiN) Coated, For High Performance Roughing
KYOCERA SGS PRECISION TOOLS
SGS47708
47708
Z5C04724E098_18TA
UPC: 691781477084
Weight: 0.31 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$232.98
(44% off)
$130.70
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds
Product Description

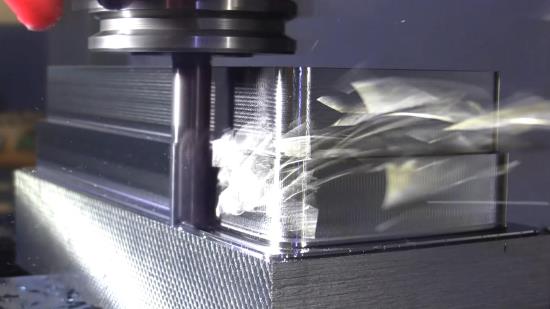

Sgs Z-Carb-Hpr - High Performance Roughers. The Sgs Z-Carb Hpr Five Flute Roughing End Mills Are Ideal For Achieving High Material Removal Rates And Superior Finishes. The Specialized Five Flute Design Is Engineered For Strength, Chip Evacuation, And Increased Productivity Over Three And Four-Flute End Mills By 20–40%. The Variable Flute Pattern Provides Excellent Chatter Suppression Over A Range Of Spindle Speeds. The Open-Center Design Delivers Efficiency During Entry Movements Into The Workpiece. The Helix Angle Is Engineered For Balance Between Positive Cutting Action And Reduced Contact Area To Control Tool Pressure And Spindle Load. The Specially Designed Radial Rake Balances Positive Cutting Action And Edge Strength. The End Grind Features Include A Positive Axial Rake For High-Performance Shearing And Lifting Of Material, And Increased Clearances To Eliminate Edge Build-Up During Ramping. Select Sizes Of The Z-Carb-Hpr Are Availalbe With A Central Coolant Hole To Deliver Coolant Effectively To The Cutting Zone And Enhance Chip Removal When Pocketing Or Slotting. Some Tools Are Offered With A Chip Breaker Option. The Chip Breakers Break Up The Chips Formed By Long Flute Engagement, Allowing For Better Chip Flow And Evacuation In Deep Pocketing Operations. This Specialized Chip Breaker Design Enhances Edge Strength And Reduces Load. With The Z-Carb-Hpr, Typical Ramp Angles Of 5 Degrees Are Common; However, Greater Than 5 Degree Ramp Angles Are Obtainable With Reduced Feed Rates. The Open Center Design Provides An Ideal Exit For Central Coolant And Chip Flushing While Maintaining The 5 Degree Ramp Angle. In Roughing Operations, One Times Diameter Slotting Capability Is Common While 50% Radial By 150% Axial Heavy Profiling Capability Is Common. The Variable Geometry Contributes To Exceptional Finishing Capabilities; 10 Μin. Ra Is Possible. The Z-Carb-Hpr Is Availalbe With Three High Performance Coatings: Ti-Namite-M Coating For Higher Heat Resistance To Enhance Tool Life In Difficult To Machine Materials Like Titanium. Ti-Namite-A Coating For Superior Wear, Edge Build-Up Resistance And Extended Tool Life In Difficult To Machine Materials Like Stainless Steel. New Megacoat Nano Layered Coating With Excellent Wear And Oxidation Resistance For Difficult-To-Cut Materials Like Heat-Resistant Super Alloys And Stainless Steel.

  • Positive Radial Rake
  • Variable Flute Pattern
  • Open Center Design
  • Long Reach
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

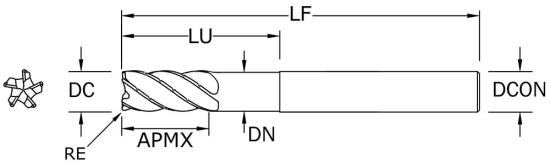

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
47708
Cutter Diameter
0.4724" 12.00mm
Length Of Cut
1.0236" 26.00mm
Overall Length
3.9370" 100.00mm
Shank Diameter
0.4724" 12.00mm
Radius Size
.0984" 2.50mm
Number Of Flutes
5
Helix Angle
37°
End Style
Corner Radius
Tool Coating
AlTiN (Ti-NAMITE-A)
Tool Substrate Material
Carbide
Primary Application
High Performance Roughing
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (K), (S), Also (H)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
Z5C
Single Or Double End
Single End
Center Cutting
No
Flute End Type
.1650" Non-Cutting Center Diameter
Type Of End Mill
Rougher/Finisher
Model
Z-Carb-HPR
Shank Type
Plain Shank
Neck Diameter
0.449" 11.40mm
Chip Breaker
No
Coolant Through
No Coolant Holes
Length
Long Reach Neck
Helix Type
Regular Helix
