#12 (.1890") 2 Flute Carbide 5xD Flat Bottom Drill, Coolant-Thru, 6mm Shank, 1.2205" Flute, 3.5433" OAL, 180° Point. SGS Hi-PerCarb Series 146U, TX (Ti-NAMITE-X) Coated For Materials < HRc56

#12 (.1890") 2 Flute Carbide 5xD Flat Bottom Drill, Coolant-Thru, 6mm Shank, 1.2205" Flute, 3.5433" OAL, 180° Point. SGS Hi-PerCarb Series 146U, TX (Ti-NAMITE-X) Coated For Materials < HRc56 #12 (.1890") 2 Flute Carbide 5xD Flat Bottom Drill, Coolant-Thru, 6mm Shank, 1.2205" Flute, 3.5433" OAL, 180° Point. SGS Hi-PerCarb Series 146U, TX (Ti-NAMITE-X) Coated For Materials < HRc56
KYOCERA SGS PRECISION TOOLS
SGS58881
58881
14605D_12TX
UPC: 691781588810
Weight: 0.053 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$259.11
(44% off)
$145.36
each
Add To My Favorites
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 146U - Coolant-Through Flat Bottom High Performance Carbide Drills Engineered For Precision Flat Bottom Holemaking. The Key Features Designed Into The Hi-Percarb® Series 146U Drills Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 146U Drills Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The Sgs Hi-Percarb® Series 146U Flat Bottom Drills Provide A Robust Solution To A Variety Of Challenging Holemaking Applications In The Automotive, Agriculture, Oil And Gas, And General Machining Industries. Whether Drilling Conventionally, On Angled Or Curved Surfaces, Cross Or Intersecting Holes, Unique Features Of The Sgs Design Combine To Produce Precise, High-Quality Holes, With Minimal Breakout Bur. The Eccentic 4-Margin Design Incorporates A Unique Coolant Channel Design Allowing Repositioning Of The Trailing Margins For Improved Stability Over Conventional Two And Four Margin Drills. The Two Coolant Channel Design Provides Additional Coolant In The Hole When Thru-Tool Coolant Is Not Available. This Eccentric Style Clearance Reduces Margin Contact With The Workpiece Without Reducing Strength. The Primary Only Relief Geometry Allows The Trailing Margins To Help Stabilize The Drill Up To Three Times Faster Than Conventional Designs And The High Shear Corner Geometry Minimizes Exit Bur. The Computer Controlled Edge Honing Process Protects Against Edge Chipping In Difficult Drilling Applications. The Coolant-Through Design Puts Coolant As Close To The Cut As Possible For Consistent Chip Flushing, Maximum Cooling And Highest Productivity. The Proprietary Sgs Ti-Namite®-X Coating And Post-Coat Polishing Combine To Minimize Material Adhesion And Maximize Wear Resistance In A Wide Range Of Workpiece Materials. These Drills Are Recommended For Materials =< Hrc56

  • 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials <= 56 HRc (<= 577 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

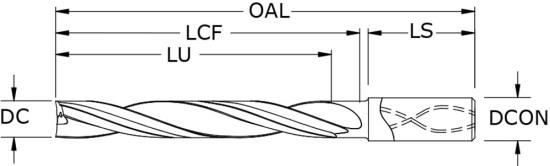

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
58881
Length Of Flute
1.2205"
Overall Length
3.5433" 90mm
Shank Diameter
0.2362" 6mm
Number Of Flutes
2
Drill Point Angle
180°
Drill Type
Flat Bottom Drill
Helix Angle
15°
Tool Coating
TX (Ti-NAMITE-X)
Tool Substrate Material
Carbide
Primary Application
Universal Use In Materials < HRc56
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P),(M),(K),(N),(S),(H),Also Plastics & Composites
Inch Or Metric
Inch
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
146U
Shank Type
Common Shank
Drill Diameter
0.1890" #12
Reach Multiple
5xD
Coolant Through
Internal Coolant Holes
Depth Of Cut
0.9844" 25.00mm
Helix Type
Right Hand Spiral
