8.60mm (.3386") 2 Flute Carbide 3xD Stub Length Drill, 10mm Shank, 47mm Flute, 89mm OAL, 145° Point. SGS Hi-PerCarb Series 135M, AlTiN (Ti-NAMITE-A) Coated For Materials < HRc50

8.60mm (.3386") 2 Flute Carbide 3xD Stub Length Drill, 10mm Shank, 47mm Flute, 89mm OAL, 145° Point. SGS Hi-PerCarb Series 135M, AlTiN (Ti-NAMITE-A) Coated For Materials < HRc50 8.60mm (.3386") 2 Flute Carbide 3xD Stub Length Drill, 10mm Shank, 47mm Flute, 89mm OAL, 145° Point. SGS Hi-PerCarb Series 135M, AlTiN (Ti-NAMITE-A) Coated For Materials < HRc50
KYOCERA SGS PRECISION TOOLS
SGS63770
63770
135D03386TA
UPC: 691781637709
Weight: 0.156 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$300.70
(44% off)
$168.69
each
Add To My Favorites
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 135 - High Performance Carbide Drills Engineered For Edge Protection. The Key Features Designed Into The Hi-Percarb® Series 135 Drill Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 135 Drill Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The High Performance Flute Design Efficiently Transports Chips And Increases Strength For Aggressive Drilling. A Secondary Flute Provides A Channel For Cooling Capabilities Not Normally Found In External Coolant Drills. This Special Feature Improves Coolant Flow To The Drill Point, Reduces Friction Along The Drill Body And Assists In Fine Swarf Evacuation. The Specialized 145° Notched Point Is Self-Centering, Eliminating The Need For Spot Drilling, Improves Chip Control And Decreases Drill Thrust And Deflection. The 4-Margin Design Increases Stability And Rigidity While Providing Improved Hole Accuracy And Surface Finish With A Burnishing Effect. The Engineered Edge Protection Improves Edge Strength, Reduces Edge Fatigue And Allows For Increased Feed Rates. The Applied Ti-Namite®-A Coating Enhances Tools Life By Providing Exceptional Heat, Wear And Erosion Resistance When Drilling Heat Resistant Alloys Like Inconel, Stainless Steel And Titanium. These Drills Are Recommended For Materials =< Hrc50

  • 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials <= 50 HRc (<= 475 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
8
Add to Cart

Additional Product Details

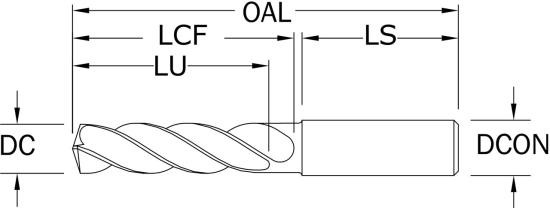

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
63770
Length Of Flute
1.8504" 47mm
Overall Length
3.5039" 89mm
Shank Diameter
0.3937" 10mm
Number Of Flutes
2
Drill Point Angle
145°
Drill Type
Stub Length Drill
Helix Angle
32°
Tool Coating
AlTiN (Ti-NAMITE-A)
Tool Substrate Material
Carbide
Primary Application
Universal Use In Materials < HRc50
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (H), Also (K), (N), (S)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
135M
Shank Type
Common Shank
Drill Diameter
0.3386" 8.60mm
Reach Multiple
3xD
Coolant Through
No Coolant Holes
Depth Of Cut
1.5748" 40.00mm
Helix Type
Right Hand Spiral
