15.50mm (.6102") 3 Flute Carbide 5xD Jobber Drill, Coolant-Thru, 16mm Shank, 83mm Flute, 133mm OAL, 124° Point. SGS Hi-PerCarb Series 141K, TM (Ti-NAMITE-M) Coated For Cast Iron & Materials < HRc43

15.50mm (.6102") 3 Flute Carbide 5xD Jobber Drill, Coolant-Thru, 16mm Shank, 83mm Flute, 133mm OAL, 124° Point. SGS Hi-PerCarb Series 141K, TM (Ti-NAMITE-M) Coated For Cast Iron & Materials < HRc43 15.50mm (.6102") 3 Flute Carbide 5xD Jobber Drill, Coolant-Thru, 16mm Shank, 83mm Flute, 133mm OAL, 124° Point. SGS Hi-PerCarb Series 141K, TM (Ti-NAMITE-M) Coated For Cast Iron & Materials < HRc43
KYOCERA SGS PRECISION TOOLS
SGS65260
65260
HPK05D06102TM
UPC: 691781652603
Weight: 0.569 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$831.88
(47% off)
$443.64
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 141K - Coolant-Through 3-Flute High Performance Carbide Drills For Cast Iron. The Key Features Designed Into The Hi-Percarb® Series 141K Drill Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 141K Drill Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The Series 141K Drill Highlights A Tri-Margin Design That Significantly Enhances Hole Stability, Surface Finish, Roundness, Cylindricity, And Hole Size Control Compared To Two-Flute Designs. Additionally, The Drill Incorporates Edge And Corner Protection For Reduced Breakout, An Automated Edge Treatment Process To Extend Tool Life, And A Minimal Margin Design To Minimize Frictional Heat And Maintain Consistent Contact Width During Use. The 3-Margin Design Imparts Improved Hole Stability Over Two-Flute Designs, Superior Surface Finish, Roundness, And Hole Cylindricity With Unsurpassed Hole Size Control. The Narrow Margin Design Reduces Frictional Heat Generated By Excessive Contact With The Workpiece, And The Parallel Design Helps To Maintain A Consistent Contact Width As The Margins Wear. The Self-Stabilizing Pyramid Point Design Stabilizes The Drill On Contact With The Workpiece And The Engineered Flute Shape Efficiently Transports Chip Volume Without Sacrificing Strength. Corner Chamfers Provide Strength And Reduce Breakout When Drilling Through-Holes In Cast Iron. An Automated Edge Treatment Process Extends Tool Life By Eliminating Microscopic Imperfections In The Cutting Edges. The Coolant-Through Design Puts Coolant As Close To The Cut As Possible For Consistent Chip Flushing, Maximum Cooling And Highest Productivity. The Series 141K Drills Are Manufactured From Premium Certified Carbide To Further Ensure The Highest Level Of Quality, Performance, And Longevity. These Drills Are Coated With Ti-Namite®-M. Features Of Ti-Namite®-M Include High Wear Resistance, Reduced Friction, And Excellent Prevention Of Cutting Edge Build Up. This Coating Allows Superior Material Removal Rates And Tool Life When Used In High Performance Operations In Cast Iron And Steel And With Difficult To Machine Materials Like Titanium. These Drills Are Recommended For Use In Materials =< Hrc43

  • 3-margin design improves hole stability and size control while providing superior finish, roundness and cylindricity
  • Self-stabilizing pyramid point design stabilizes the drill on contact with the workpiece
  • Open flute structure efficiently transports chips while maintaining strength at high feed rates
  • Sculpted gash allows chips to easily flow away from the drill center
  • Recommended for materials <= 43 HRc (<= 400 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

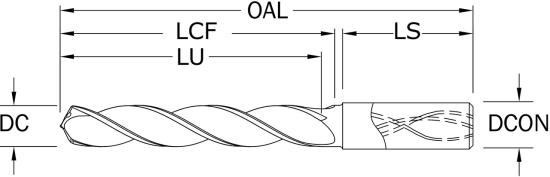

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
65260
Length Of Flute
3.2677" 83mm
Overall Length
5.2362" 133mm
Shank Diameter
0.6299" 16mm
Number Of Flutes
3
Drill Point Angle
124°
Drill Type
Jobber Length Drill
Helix Angle
30°
Tool Coating
TM (Ti-NAMITE-M)
Tool Substrate Material
Carbide
Primary Application
Cast Iron and Materials < HRc43
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(K), Also (P), (M), (N), (S)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
141K
Shank Type
Common Shank
Drill Diameter
0.6102" 15.50mm
Reach Multiple
5xD
Coolant Through
Internal Coolant Holes
Depth Of Cut
2.4803" 63.00mm
Helix Type
Right Hand Spiral
