5.00mm (.1969") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 6mm Shank, 28mm Flute, 66mm OAL, 137° Point. SGS Hi-PerCarb Series 142P, TX (Ti-NAMITE-X) Coated For Steels & Materials < HRc50

5.00mm (.1969") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 6mm Shank, 28mm Flute, 66mm OAL, 137° Point. SGS Hi-PerCarb Series 142P, TX (Ti-NAMITE-X) Coated For Steels & Materials < HRc50 5.00mm (.1969") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 6mm Shank, 28mm Flute, 66mm OAL, 137° Point. SGS Hi-PerCarb Series 142P, TX (Ti-NAMITE-X) Coated For Steels & Materials < HRc50
KYOCERA SGS PRECISION TOOLS
SGS66420
66420
14203D01969TX
UPC: 691781664200
Weight: 0.052 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$203.83
(44% off)
$114.35
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 142P - Coolant-Through High Performance Carbide Drills Engineered For Steels. The Key Features Designed Into The Hi-Percarb® Series 142P Drill Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 142P Drill Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The 4-Margin Design Provides Additional Margin Contact, Improving Hole Straightness And Roundness While Providing Improved Stability For Difficult Applications Like Cross Holes And When Exiting On An Angle. The High-Performance Point Design Stabilizes On Entry For Exceptional Hole Size And Cylindricity While Also Allowing For Low Thrust Force, Reducing Machine Power Requirements And Extending Tool Life. The Coolant-Through Design Puts Coolant As Close To The Cut As Possible For Consistent Chip Flushing, Maximum Cooling And Highest Productivity. The Series 142P Drills Are Manufactured From Premium Certified Carbide To Further Ensure The Highest Level Of Quality, Performance, And Longevity. These Drills Are Coated With Ti-Namite®-X. The Structural Design Of Ti-Namite®-X Is Adapted To Meet A Diverse Range Of Applications; Everything From High-Alloyed And Low-Alloyed Steels To Hardened Materials (Up To 65 Hrc Core Hardness). Ti-Namite®-X Is Suitable For Operations Which Require High Cutting Speeds, High Temperatures At The Cutting Edge, And High Metal Removal Rates.These Drills Are Recommended For Materials =< Hrc50

  • High-performance point design stabilizes on entry for exceptional hole size and cylindricity while also allowing for low thrust force and extended tool life
  • Internal coolant hole improves coolant flow to extend tool life and aid in chip evacuation
  • 4-margin design improves hole straightness and roundness while providing improved stability for difficult applications like cross holes and when exiting on angle
  • Proprietary Ti-NAMITE®-X coating and industry leading carbide substrate provides exceptional wear resistance and toughness for demanding applications
  • Recommended for materials <= 50HRc (475 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
43
Add to Cart

Additional Product Details

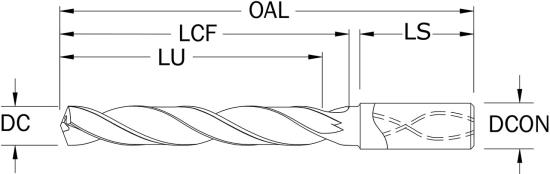

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
66420
Length Of Flute
1.1024" 28mm
Overall Length
2.5984" 66mm
Shank Diameter
0.2362" 6mm
Number Of Flutes
2
Drill Point Angle
137°
Drill Type
Stub Length Drill
Helix Angle
30°
Tool Coating
TX (Ti-NAMITE-X)
Tool Substrate Material
Carbide
Primary Application
Steels and Materials < HRc50
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (N), (H), Also (M), (K), (S)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
142P
Shank Type
Common Shank
Drill Diameter
0.1969" 5.00mm
Reach Multiple
3xD
Coolant Through
Internal Coolant Holes
Depth Of Cut
0.7874" 20.00mm
Helix Type
Right Hand Spiral
