7.40mm (.2913") 3 Flute Carbide 3xD Stub Length Drill, 8mm Shank, 41mm Flute, 79mm OAL, 124° Point. SGS Hi-PerCarb Series 131N, TIB2 (Ti-NAMITE-B) Coated For Aluminum & Non-Ferrous

7.40mm (.2913") 3 Flute Carbide 3xD Stub Length Drill, 8mm Shank, 41mm Flute, 79mm OAL, 124° Point. SGS Hi-PerCarb Series 131N, TIB2 (Ti-NAMITE-B) Coated For Aluminum & Non-Ferrous 7.40mm (.2913") 3 Flute Carbide 3xD Stub Length Drill, 8mm Shank, 41mm Flute, 79mm OAL, 124° Point. SGS Hi-PerCarb Series 131N, TIB2 (Ti-NAMITE-B) Coated For Aluminum & Non-Ferrous
KYOCERA SGS PRECISION TOOLS
SGS67644
67644
HPN03D02913TB
UPC: 691781676449
Weight: 0.083 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$217.51
(44% off)
$122.02
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 131N - High Performance Carbide Drills For Aluminum. The Key Features Designed Into The Hi-Percarb® Series 131N Drill Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 131N Drill Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The 3-Margin Design Provides Improved Hole Stability Over Two-Flute Designs With Superior Surface Finish, Roundness And Hole Cylindricity For Unsurpassed Hole Size Control. The Self-Stabilizing Pyramid Point Design Stabilizes The Drill On Contact With The Workpiece And The Open Flute Structure Efficiently Transports Chips While Maintaining Strength At High Feed Rates. The Sculpted Gash Allows Chips To Easily Flow Away From The Drill Center For Reduced Cutting Forces Over Competitive Three-Flute Designs. The Minimal Margin Design Reduces Frictional Heat Generated By Excessive Margin Contact With The Workpiece While The Parallel Design Maintains Contact Width As The Drill Margin Wears, For Ultimate Performance Consistency. The Sgs Hi-Percarb® Series 131N Drills Are Offered Uncoated With A Bright Finish Or With Ti-Namite-B (Tib2) High Performance Coating. This Ceramic Based Coating Ensures A Smooth Surface And A Low AfNity To Cold Welding Or Edge Build-Up, Which Makes It Optimal For Aluminum And Copper Applications. It Has High Toughness And High Hardness.

  • 3-margin design improves hole stability and size control while providing superior finish, roundness and cylindricity
  • Self-stabilizing pyramid point design stabilizes the drill on contact with the workpiece
  • Open flute structure efficiently transports chips while maintaining strength at high feed rates
  • Sculpted gash allows chips to easily flow away from the drill center
  • Recommended for materials <= 175 Bhn (<= 16 HRc)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
2
Add to Cart

Additional Product Details

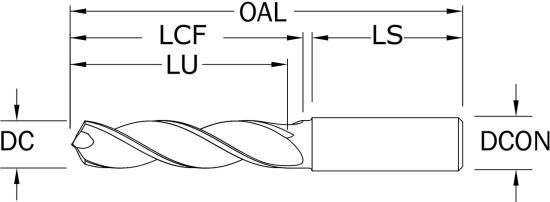

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
67644
Length Of Flute
1.6142" 41mm
Overall Length
3.1102" 79mm
Shank Diameter
0.3150" 8mm
Number Of Flutes
3
Drill Point Angle
124°
Drill Type
Stub Length Drill
Helix Angle
30°
Tool Coating
TIB2 (Ti-NAMITE-B)
Tool Substrate Material
Carbide
Primary Application
Aluminum and Non-Ferrous Materials
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(N), Also (K), (S)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
131N
Shank Type
Common Shank
Drill Diameter
0.2913" 7.40mm
Reach Multiple
3xD
Coolant Through
No Coolant Holes
Depth Of Cut
1.1417" 29.00mm
Helix Type
Right Hand Spiral
