6.10mm (.2402") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 8mm Shank, 34mm Flute, 79mm OAL, 136° Point. SGS Hi-PerCarb Series 143, AlTiN (Ti-NAMITE-A) Coated For Stainless & HRSA < HRc50

6.10mm (.2402") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 8mm Shank, 34mm Flute, 79mm OAL, 136° Point. SGS Hi-PerCarb Series 143, AlTiN (Ti-NAMITE-A) Coated For Stainless & HRSA < HRc50 6.10mm (.2402") 2 Flute Carbide 3xD Stub Drill, Coolant-Thru, 8mm Shank, 34mm Flute, 79mm OAL, 136° Point. SGS Hi-PerCarb Series 143, AlTiN (Ti-NAMITE-A) Coated For Stainless & HRSA < HRc50
KYOCERA SGS PRECISION TOOLS
SGS69151
69151
14303D02402TA
UPC: 691781691510
Weight: 0.1 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$235.57
(44% off)
$132.15
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

Sgs Hi-Percarb® Series 143M-S - Coolant-Through High Performance Carbide Drills Engineered For Heat Resistant Super Alloys And Stainless Steels. The Key Features Designed Into The Hi-Percarb® Series 143M-S Drill Allow The Product To Offer Application Benefits Not Only Beyond That Of Standard Carbide Drills, But Also Other High Performance Drills. Each Feature Of The Hi-Percarb® Series 143M-S Drill Was Uniquely Engineered As A Solution Towards Addressing The Issues Commonly Encountered During High Production Drilling. The Eccentric Margin Design Reduces Frictional Heat And Minimizes Material Adhesion To The Margins Without Weakening The Drill. Lower Contact With The Hole Surface Improves Hole Finish And Quality, Especially In Gummy Workpiece Materials. The High-Performance Point Design Stabilizes On Contact For Exceptional Hole Size And Cylindricity Allowing For Low Thrust Force, Reducing Machine Power Requirement And Extending Tool Life. A Computer Controlled Edge Honing Process Protects Against Chipping Damage. The Coolant-Through Design Puts Coolant As Close To The Cut As Possible For Consistent Chip Flushing, Maximum Cooling And Highest Productivity. The Modified Coolant Hole Exit Increases Coolant Flow For Improved Chip Evacuation And Extended Tool Life. The Series 143M-S Drills Are Manufactured From Premium Certified Carbide To Further Ensure The Highest Level Of Quality, Performance, And Longevity. The Sgs Ti-Namite®-A Coating Exhibits Excellent Thermal And Chemical Resistance, Allowing For Dry Cutting And Improvements In Performance Of Carbide. The Coating Has A High Hardness Giving Great Protection Against Abrasive Wear And Erosion. Ti-Namite®-A Coating Provides Exceptional Wear And Erosion Resistance When Drilling Heat Resistant Alloys Like Inconel, Stainless Steel And Titanium Alloys. These Drills Are Recommended For Materials =< Hrc50

  • Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
  • Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
  • Computer controlled edge honing protects against chip damage
  • High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
  • SGS Ti-NAMITE®-A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
  • Recommended for materials <= 50HRc (475 Bhn)
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory Stock
12
Add to Cart

Additional Product Details

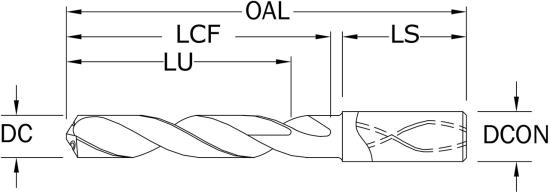

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
69151
Length Of Flute
1.3386" 34mm
Overall Length
3.1102" 79mm
Shank Diameter
0.3150" 8mm
Number Of Flutes
2
Drill Point Angle
136°
Drill Type
Stub Length Drill
Helix Angle
30°
Tool Coating
AlTiN (Ti-NAMITE-A)
Tool Substrate Material
Carbide
Primary Application
Stainless Steels and Materials < HRc50
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(M), (N), (S), Also (P), (K)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
143
Shank Type
Common Shank
Drill Diameter
0.2402" 6.10mm
Reach Multiple
3xD
Coolant Through
Internal Coolant Holes
Depth Of Cut
0.9449" 24.00mm
Helix Type
Right Hand Spiral
