25mm 7 Flute Square End Carbide Chip Breaker End Mill, 63mm LOC, 25mm Plain Shank, 37° Helix, H-Carb Series 77MS, Ti-NAMITE-M™ Coated, For HP High Speed Machining

25mm 7 Flute Square End Carbide Chip Breaker End Mill, 63mm LOC, 25mm Plain Shank, 37° Helix, H-Carb Series 77MS, Ti-NAMITE-M™ Coated, For HP High Speed Machining 25mm 7 Flute Square End Carbide Chip Breaker End Mill, 63mm LOC, 25mm Plain Shank, 37° Helix, H-Carb Series 77MS, Ti-NAMITE-M™ Coated, For HP High Speed Machining 25mm 7 Flute Square End Carbide Chip Breaker End Mill, 63mm LOC, 25mm Plain Shank, 37° Helix, H-Carb Series 77MS, Ti-NAMITE-M™ Coated, For HP High Speed Machining
KYOCERA SGS PRECISION TOOLS
SGS74555
74555
77025R09843TM
UPC: 691781745558
Weight: 1.751 LBS
Brand: KYOCERA SGS PRECISION TOOLS
$1,069.51
(47% off)
$570.37
each
Add To My Favorites
Technical Details & Downloads
Speeds & Feeds Catalog Page Catalog Page
Product Description

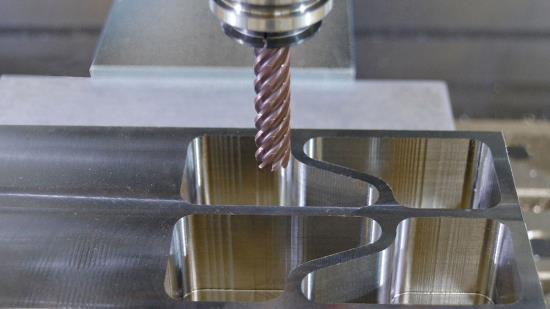

Sgs H-Carb Series 77 - 7-Flute High Performance Carbide End Mills. The H-Carb Seven Flute High Efficiency Endmill Specializes In Deep Axial Trochoidal And High-Speed Machining Applications Offered At Various Lengths Of Cut. The Specialized Core And Flute Design Improves Rigidity And Chip Flow While Reducing Deflection. The Open Center Design Delivers Efficiency During Entry Movements Into The Workpiece, And The Specially Engineered Gash Provides Increased Strength At The End Of The Tool. The Innovative Seven Flute Design Allows For Higher Feed Rates, Decreasing Cycle Time And Improving Productivity. An Optimized Core Improves Rigidity, Chip Flow And Reduced Deflection. The Variable Flute Indexing Provides Advanced Chatter Suppression. Optimized Helix Angle Provides Enhanced Shearing Capabilities. The Series Is Offered In A Variety Of Cut Lengths And End Configurations With Two Cutting Edge Styles. The Availalbe Chip Breaker Profile Breaks Up The Chips Formed By The Long Flute Length Allowing For Better Chip Flow And Evacuation In Deep Pocketing Operations. This Specialized Design Enhances Edge Strength And Reduces Load. The Central Coolant Hole Option Delivers Coolant Effectively To The Cutting Zone And Enhances Chip Removal When Pocketing Or Slotting. The H-Carb Is Available With Either Ti-Namite®-M Or Ti-Namite®-A Coatings For Superior Tool Life And Performance In A Variety Of Ferrous Materials And High-Temp Alloys. Features Of Ti-Namite®-M Include High Wear Resistance, Reduced Friction, And Excellent Prevention Of Cutting Edge Build Up. The Coating Provides Superior Material Removal Rates And Tool Life When Used In High Performance Operations In Cast Iron And Steel And With Difficult To Machine Materials Like Titanium. The H-Carb Is Also Available With An Abrasive Resistant And Hard Coating, Ti-Namite®-A . This Coating Has A High Hardness Giving Ultimate Protection Against Abrasive Wear And Erosion. Ideal For High Temperature Alloys And Stainless-Steel Applications.

  • Specializes in deep axial trochoidal and high-speed milling applications
  • Optimized core improves rigidity, chip flow and reduces deflection
  • Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
Made in U.S.A.
Shipping & Delivery Options
CUYAHOGA FALLS, OHIO USA
  • UPS
$50.00 MINIMUM ORDER
SGS-Kyocera will Ship Same Business Day if ordered by 1pm Eastern Standard Time
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

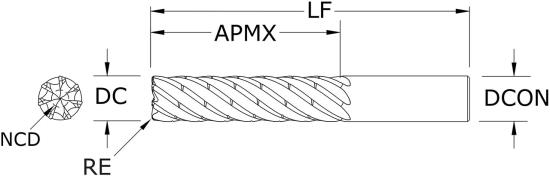

Technical Details

Manufacturer
KYOCERA SGS PRECISION TOOLS
Manufacturer Part Number
74555
Cutter Diameter
0.9843" 25.00mm
Length Of Cut
2.4803" 63.00mm
Overall Length
5.3150" 135.00mm
Shank Diameter
0.9843" 25.00mm
Radius Size
Sharp
Number Of Flutes
7
Helix Angle
37°
End Style
Square End
Tool Coating
TM (Ti-NAMITE-M)
Tool Substrate Material
Carbide
Primary Application
HP High Speed Machining
Hand Cutting Direction
Right Hand Cutting
Material Food Group
(P), (M), (K), (S), Also (H)
Inch Or Metric
Metric
Country of Origin
U.S.A.
Hand Helix Direction
Right Hand Helix
Series
77MS
Single Or Double End
Single End
Center Cutting
No
Flute End Type
.3327" Non-Cutting Center Diameter
Type Of End Mill
Chip Breaker Finisher
Model
H-Carb
Shank Type
Plain Shank
Neck Diameter
Does not apply
Chip Breaker
Yes
Coolant Through
No Coolant Holes
Length
Regular
Helix Type
Regular Helix
