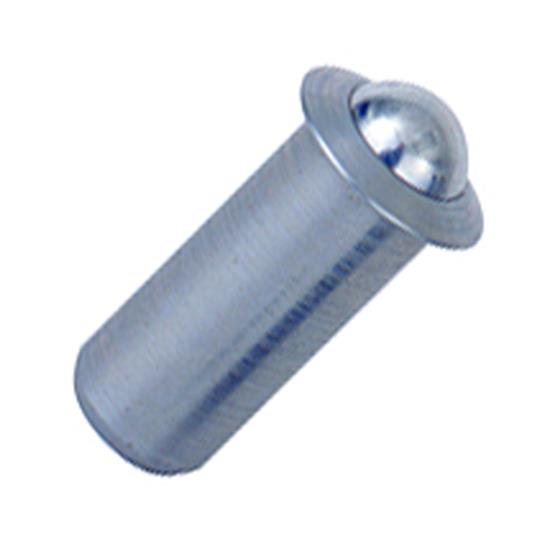

.250" Press Fit Flanged Ball Plunger, Light End Force - Stainless Steel Body, Stainless Steel Ball, .480" Length To Shoulder. Flange: .312" Diameter x .044" Thickness
TE-CO Does not offer us a Stock Feed Please confirm Stock by clicking on the REQUEST STOCK AVAILABILITY BUTTON!
53710
53710
53710
Weight: 0.02 LBS
Brand: TE-CO
Product Description
.250" Press Fit Flanged Ball Plunger, Light End Force - Stainless Steel Body, Stainless Steel Ball, .480" Length To Shoulder. Flange: .312" Diameter X .044" Thickness
- Press Fit Ball Plungers
- Material: – Steel Body: 12L14 Steel – Stainless Steel Body: 303 Stainless Steel – Ball: 440 Stainless Steel
- Black Oxide Finish – Steel Only
- Ideal for installation in softer materials, such as aluminum, wood or plastic
- Sturdy shoulder provides a fixed seating position and positively resists detent force (installation hole can be counterbored to recess the shoulder)
- Use when a threaded hole would be impractical
If in Stock Ships from Ohio
Stock
Item
Additional Product Details
Technical Details
- Manufacturer
- TE-CO
- Manufacturer Part Number
- 53710
- Thread Size
- 0.250" Press Fit
- Thread Length
- 0.480" Length To Flange
- Body Material
- 303 Stainless
- End Force Final
- 3.50 lbs
- End Force Initial
- 1.50 lbs
- Holding Force
- Light End Force
- Mount Style
- Press Fit
- Nose Diameter
- .188"
- Nose Material
- 440 Stainless
- Protrusion Length
- .070"
- Country of Origin
- U.S.A.
