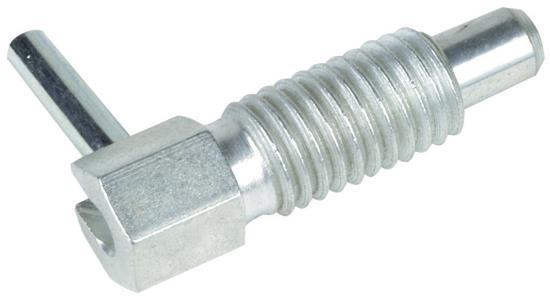

Stubby L-Handle Retractable Spring Plunger, Locking Handle, Zinc Chromate Steel, 1/4-20 Thread Without Locking Element - End Force: 0.12 lbs Initial, 0.50 lbs Final
TE-CO Does not offer us a Stock Feed Please confirm Stock by clicking on the REQUEST STOCK AVAILABILITY BUTTON!
54350X
54350X
54350X
Weight: 0.02 LBS
Brand: TE-CO
Product Description
Stubby L-Handle Retractable Spring Plunger, Locking, Zinc Chromate Steel, 1/4-20 Thread Without Locking Element - End Force: 0.12 Lbs Initial, 0.50 Lbs Final
- Designed for applications where space is limited
- Plunger can be completely withdrawn into the body and locked into a retracted position
- Chamfered plunger for easy alignment
- Easy withdrawing and re-engagement
- Built in drive wrench for rapid installation and alignment
- Zinc Plated Clear Chromate finish
If in Stock Ships from Ohio
Stock
Item
Additional Product Details
Technical Details
- Manufacturer
- TE-CO
- Manufacturer Part Number
- 54350X
- Thread Size
- 1/4-20 0.2500"
- Body Diameter
- 0.2500" Hex Size
- Overall Length
- 0.750"
- Thread Length
- 0.500"
- Finish
- Zinc Plated Clear Chromate
- Body Material
- 12L14 Steel
- Handle Style
- L-Handle
- End Force Final
- 0.50 lbs
- End Force Initial
- 0.12 lbs
- Locking Style
- Locking When Retracted
- Nose Diameter
- 0.160"
- Protrusion Length
- 0.200"
- Country of Origin
- U.S.A.
