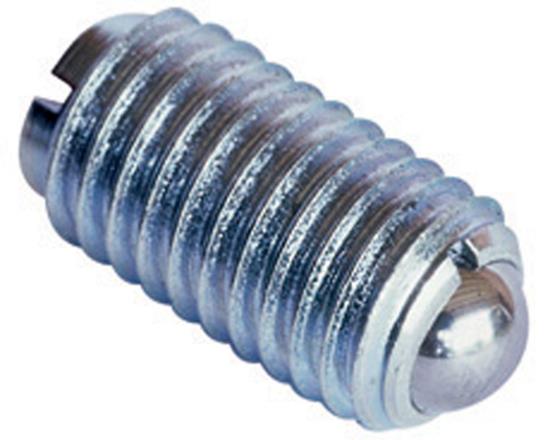

Metric Ball Plunger, Light End Force - Stainless Steel Body, Stainless Steel Ball, M6 x 1.0 Thread Without Locking Element - End Force: .45 lbs Initial, 1.35 lbs Final
TE-CO Does not offer us a Stock Feed Please confirm Stock by clicking on the REQUEST STOCK AVAILABILITY BUTTON!
64003X
64003X
64003X
Weight: 0.03 LBS
Brand: TE-CO
Product Description
Metric Ball Plunger, Light End Force - Stainless Steel Body, Stainless Steel Ball, M6 X 1.0 Thread Without Locking Element - End Force: .45 Lbs Initial, 1.35 Lbs Final
- Material: Steel Body = 12L14 Steel; Stainless Steel Body = 303 Stainless Steel; Ball = 440 Stainless Steel or Nylon
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
- Bodies are color coded to indicate end forces: Plain or Zinc = Light Force; Black = Standard Force; Gold = Heavy Force
If in Stock Ships from Ohio
Stock
Item
Additional Product Details
Technical Details
- Manufacturer
- TE-CO
- Manufacturer Part Number
- 64003X
- Thread Size
- M6 x 1.0
- Thread Length
- 14.0mm / 0.5512"
- Body Material
- 303 Stainless
- End Force Final
- 1.35 lbs / 6.00 N
- End Force Initial
- 0.45 lbs / 2.00 N
- Holding Force
- Light End Force
- Mount Style
- Screwdriver Slot
- Nose Diameter
- 3.5mm / .138"
- Nose Material
- 440 Stainless
- Protrusion Length
- 1.0mm / .039"
- Country of Origin
- U.S.A.
