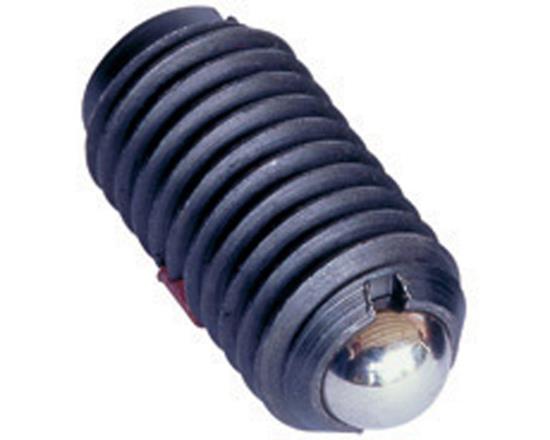

Metric Ball Plunger, Heavy End Force - Steel Body, Steel Ball, M20 x 2.5 Thread Without Locking Element - End Force: 115.00 N Initial, 240.00 N Final
TE-CO Does not offer us a Stock Feed Please confirm Stock by clicking on the REQUEST STOCK AVAILABILITY BUTTON!
69017X
69017X
69017X
Weight: 0.15 LBS
Brand: TE-CO
Product Description
Metric Ball Plunger, Heavy End Force - Steel Body, Steel Ball, M20 X 2.5 Thread Without Locking Element - End Force: 115.00 N Initial, 240.00 N Final
- Material: Steel Body = 12L14 Steel; Stainless Steel Body = 303 Stainless Steel; Ball = 440 Stainless Steel or Nylon
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
- Bodies are color coded to indicate end forces: Plain or Zinc = Light Force; Black = Standard Force; Gold = Heavy Force
If in Stock Ships from Ohio
Stock
Item
Additional Product Details
Technical Details
- Manufacturer
- TE-CO
- Manufacturer Part Number
- 69017X
- Thread Size
- M20 x 2.5
- Thread Length
- 30.0mm / 1.1811"
- Body Material
- 12L14 Steel
- End Force Final
- 53.95 lbs / 240.00 N
- End Force Initial
- 25.85 lbs / 115.00 N
- Holding Force
- Heavy End Force
- Mount Style
- Screwdriver Slot
- Nose Diameter
- 12.0mm / .472"
- Nose Material
- 12L14 Steel
- Protrusion Length
- 4.5mm / .177"
- Country of Origin
- U.S.A.
